Prefab Steel Warehouse Building with PVC Aluminum Windows

Industrial-grade steel buildings with flexible layout options for optimal space utilization.

• Main Workshop: 198.1m × 120m × 13.2m (L×W×Eave Height), Ridge Height: 18.6m

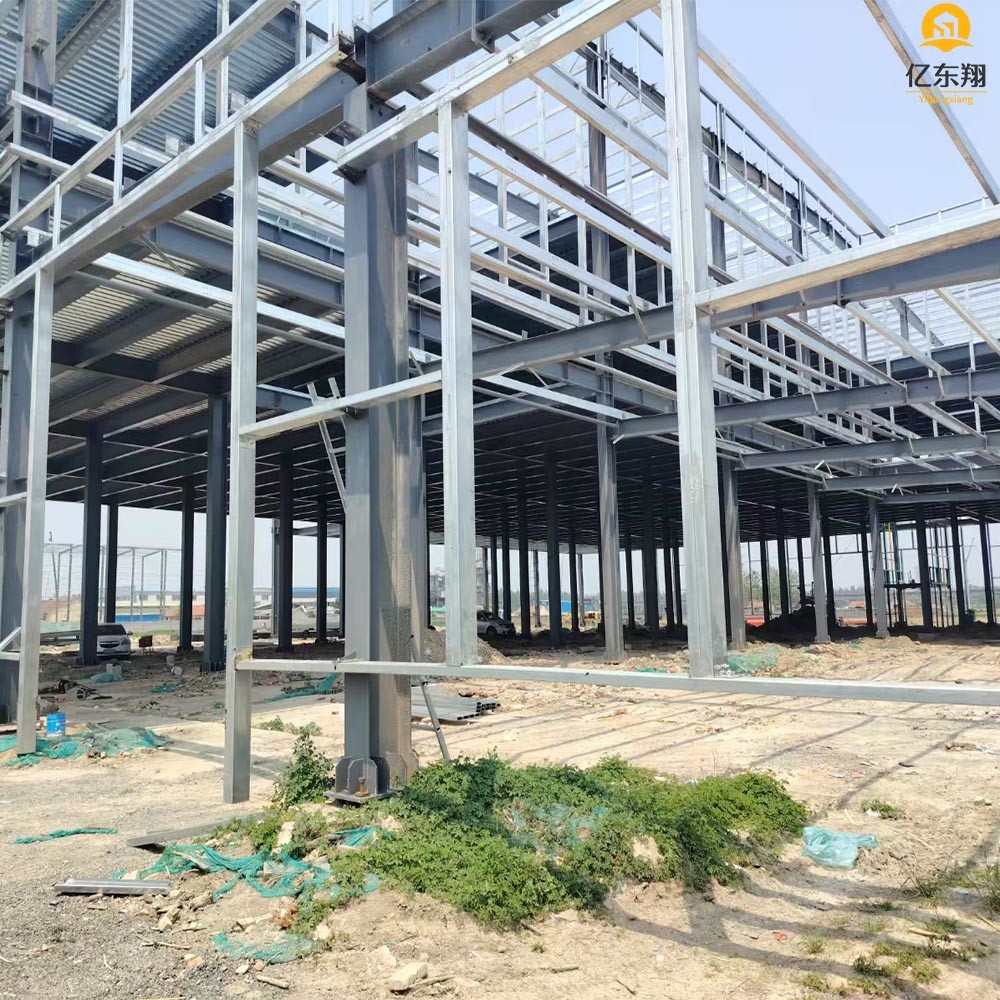

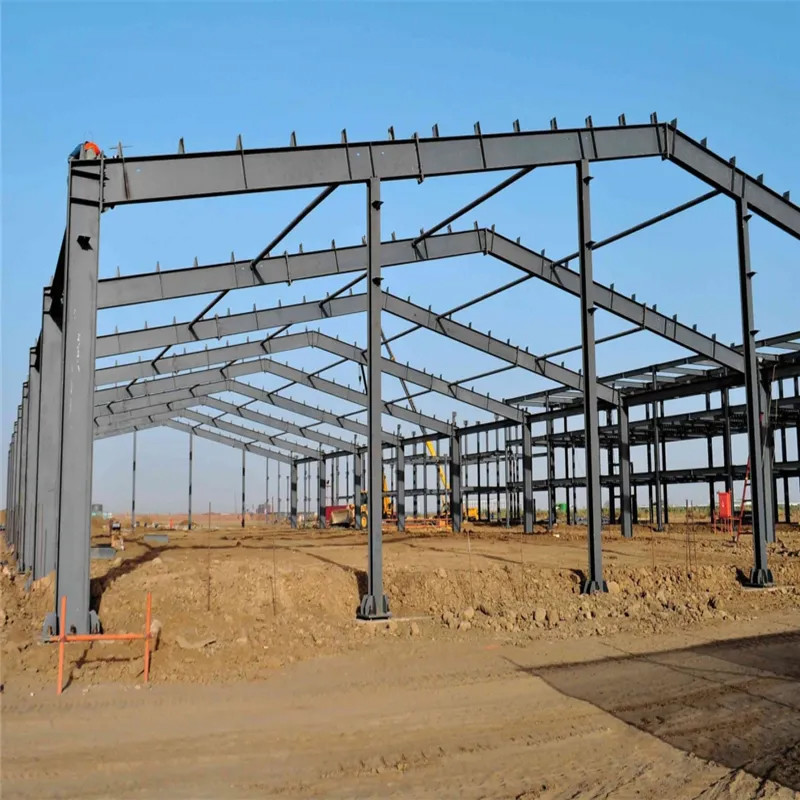

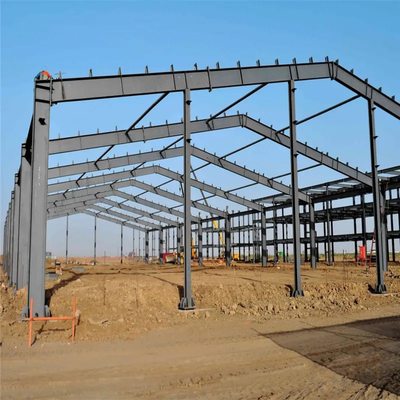

• Primary Steel Structure: Lattice steel column without anchor bolts + H section steel beam + Crane Beam
• Secondary Framing: C Purlin, Tie Bar, Roof and Wall Support, Bracing system
• Roof Cladding: Single Steel Sheet + Glasswool Blanket with Aluminium-foil + Wire Mesh

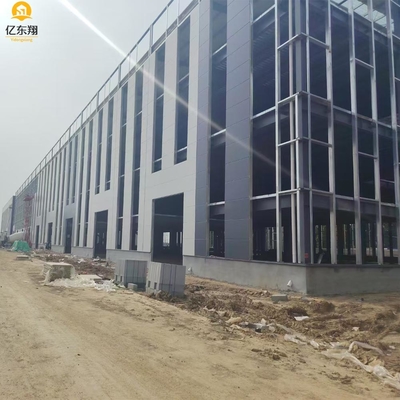

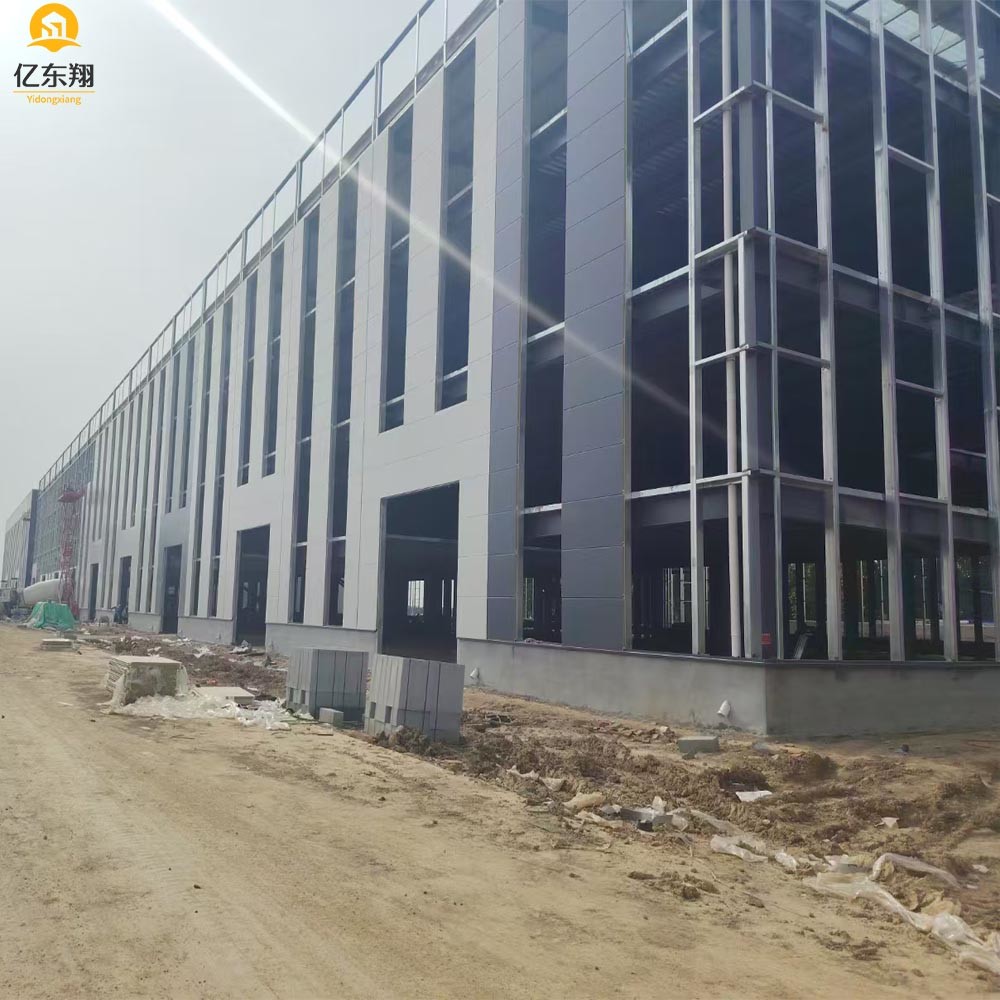

• Wall Cladding: Single Corrugated Steel Sheet + Glass Curtain
• Lighting System: Skylight Panel
• Ventilation: 36pcs Ventilator + 8pcs E-clerestory
• Windows: Aluminium alloy Window + Tinted Glass Curtain
• Doors: Sliding Door

The load bearing parts include steel columns, beams, basements, and bracing systems for wall and roof. Our steel workshops are available in both Light Steel and Heavy Steel configurations. Main structures typically use Q345 Steel while Purlins and Bracing Systems use Q235 Steel - the most common and reliable steel materials in China.

• Flexible layout options for diverse industrial applications
• Excellent ductility and plasticity with high seismic and wind resistance
• Rapid construction with long service life
• Lightweight construction with high quality-to-cost ratio
• Environmentally friendly - 100% recyclable materials

• Large span capability with exceptional strength-to-weight ratio
• Fast project completion with cost-effective construction
• Fireproof and rust-resistant construction
• Easy assembly and disassembly for flexibility
