Custom Prefabricated Steel Warehouse Building With High Strength Frame

50-10000 square meters
MOQ
$35.00-$63.00
Price
Custom Prefabricated Steel Warehouse Building With High Strength Frame
Features Gallery Product Description Chat Now
Features
Specifications
Structure Type: High Strength Steel Structure Frame
Color: Client's Request
Frame: Steel Structure
Visit: Workshop Visit And Quality Check Acceptable
Design: Custom With Free Architectural Design
Surface: Hot-dip Galvanized / Painted
Highlight:

Prefabricated Steel Warehouse Building

,

Custom Prefabricated Steel Warehouse

,

High Strength Prefabricated Metal Warehouse

Basic Infomation
Place of Origin: CHINA,QINGDAO
Brand Name: YDX
Certification: CE ISO SGS
Model Number: YDX-SD5
Payment & Shipping Terms
Packaging Details: Exported standard packing
Delivery Time: 20-30 works days
Payment Terms: T/T
Supply Ability: 10000 tons/month
Product Description
Custom Prefabricated Warehouse Building, High Strength Steel Structure Frame
Product Specifications
Structure Type High Strength Steel Structure Frame
Color Client's Request
Frame Steel Structure
Visit Workshop Visit And Quality Check Acceptable
Design Custom With Free Architectural Design
Surface Hot-dip Galvanized / Painted
Product Description

Custom prefabricated warehouse featuring high-strength bolted connections for rapid assembly and structural integrity.

Steel Structure Advantages
  • High Strength-to-Weight Ratio: Enables large spans with reduced foundation requirements
  • Durability & Longevity: Corrosion-resistant with proper treatment and minimal maintenance
  • Design Flexibility: Accommodates complex architectural designs while maintaining structural integrity
  • Rapid Construction: Prefabricated components enable faster assembly than traditional materials
  • Sustainability: 100% recyclable material supporting green building practices
  • Structural Resilience: Excellent performance in seismic zones and high-wind regions
  • Cost Efficiency: Reduced labor costs, shorter timelines, and low maintenance requirements
  • Fire Resistance: Enhanced performance with specialized fireproofing coatings
  • Adaptability: Easy modification, expansion, or repurposing as needs change
  • Quality Assurance: Factory-controlled manufacturing ensures precision and consistency
Applications

Ideal for light frame steel construction including hangars, factories, workshops, and warehouses. Our pre-engineered steel buildings feature bolt-connected assembly (no welding required) and can be up to 30% lighter than conventional steel structures.

Technical Specifications
Main Steel Frame (Steel Column & Beam)
1. Material: Q345B (S355JR) or Q235B(S235JR)/Welded/Hot Rolled H section steel
2. Surface: Hot Dip Galvanized or Painted
3. Connection: All Bolts Connection
Supporting System
Roof Purlin: C or Z Section Steel, Q235B
Wall Purlin: C or Z Section Steel, Q235B
Bracing: Steel Rod, Q235B
Cross Support: Steel Rod, Q235B
Column Support: Angle Steel; Steel Rod; Q235B
Angle Brace: Angle steel, Q235B
Tie Bar: Steel Pipe, Q235B
Roof & Wall System
1. Single Colorful Corrugated Steel Sheet (Thickness: 0.3-0.8mm)
2. Sandwich Panel with EPS, Rock Wool, Fiberglass, PU (Thickness: 50-150mm)
Accessories
Doors: Sliding; Rolled Up Door (Manual/Auto)
Windows: Aluminum Alloy; PVC
Downspout: PVC pipe
Gutter: Galvanized Steel Sheet; Stainless Steel
Ventilator: Stainless Steel Turbine Ventilator
Skylight Belt: FRP or PC semi-transparent Skylight Belt
Flash: Color Steel Sheet
Fittings: Anchor Bolt; High Strength Bolt; Standard Bolt, Self-tapping nail etc

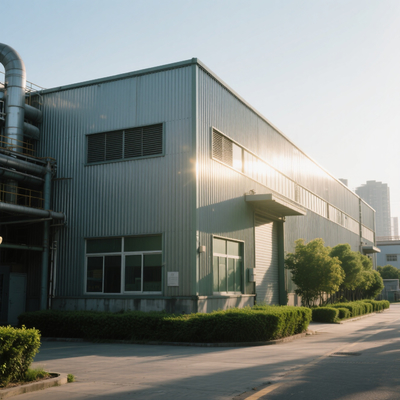

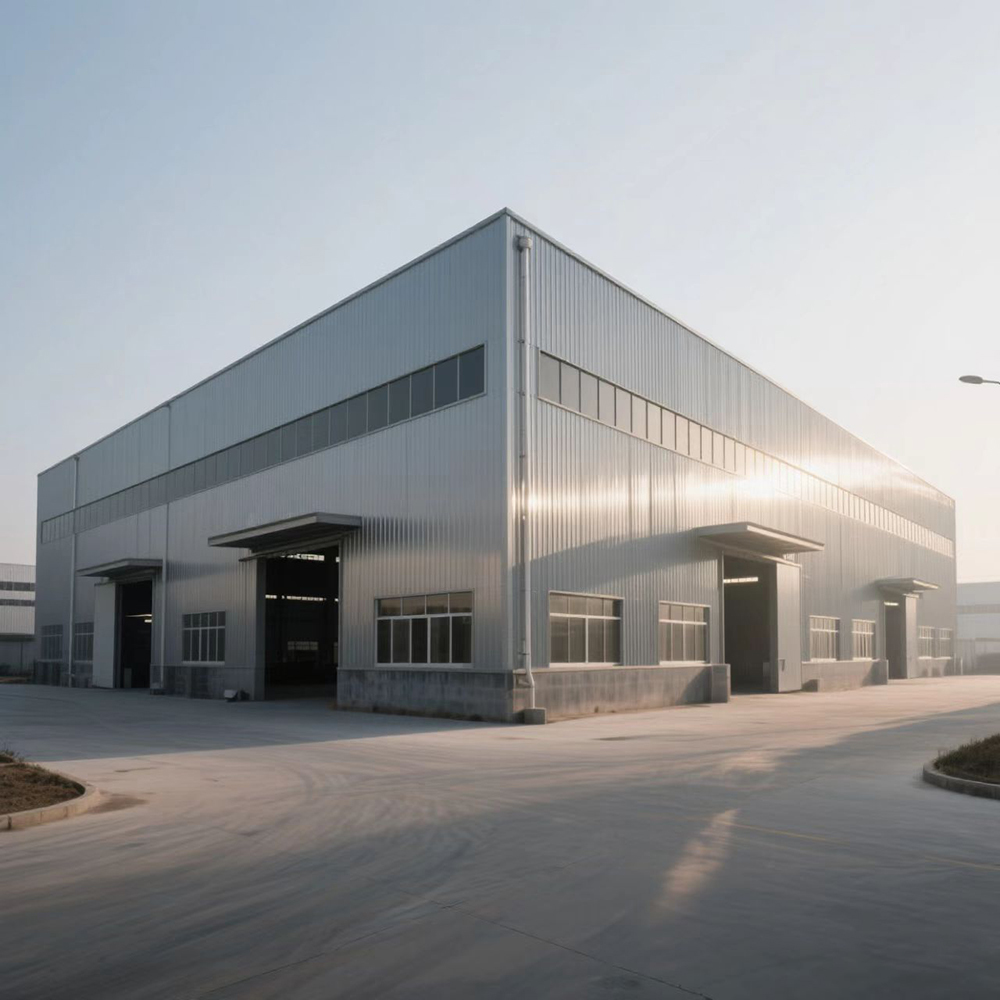

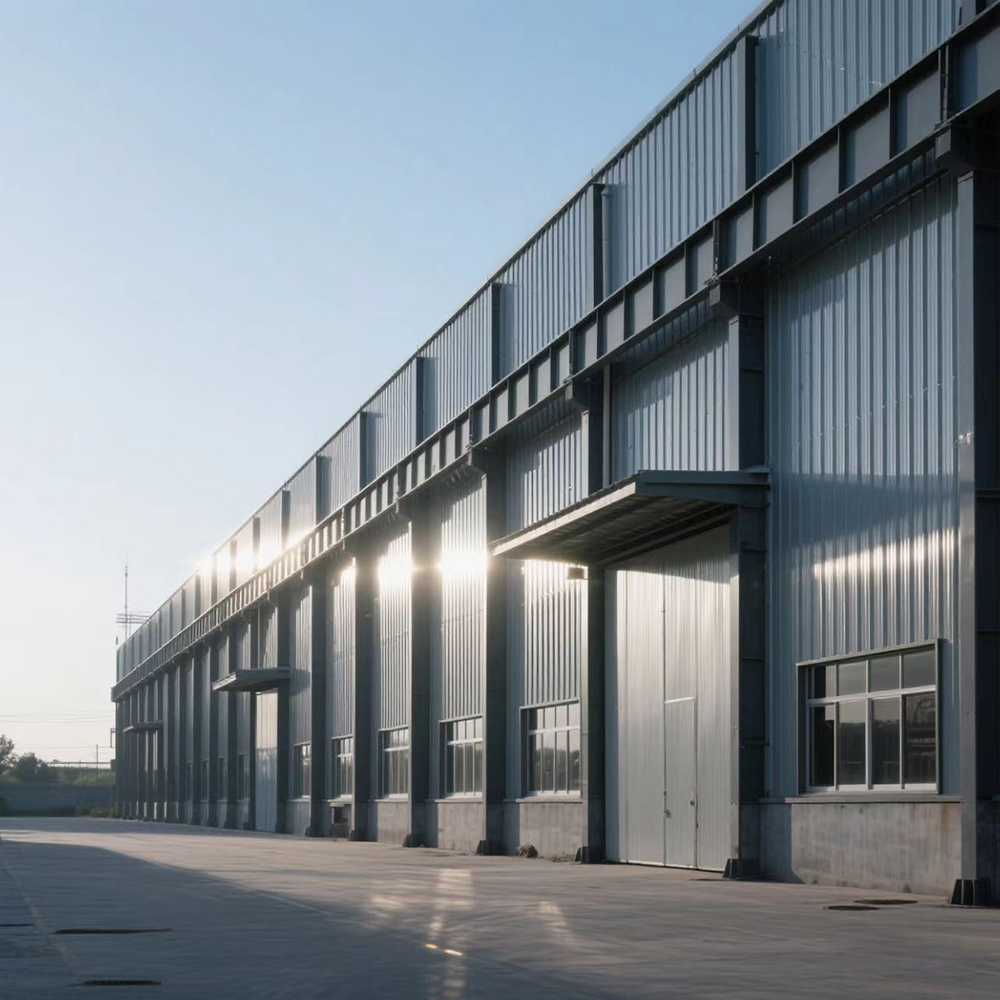

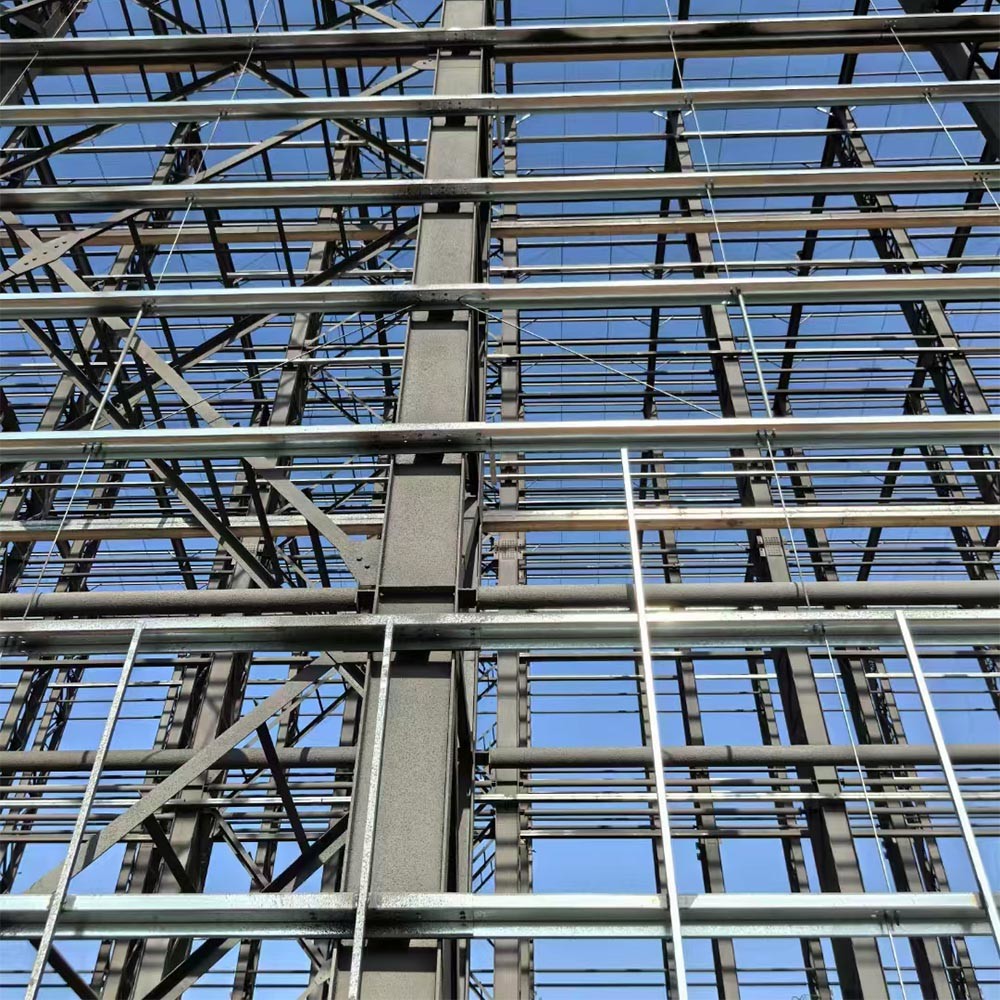

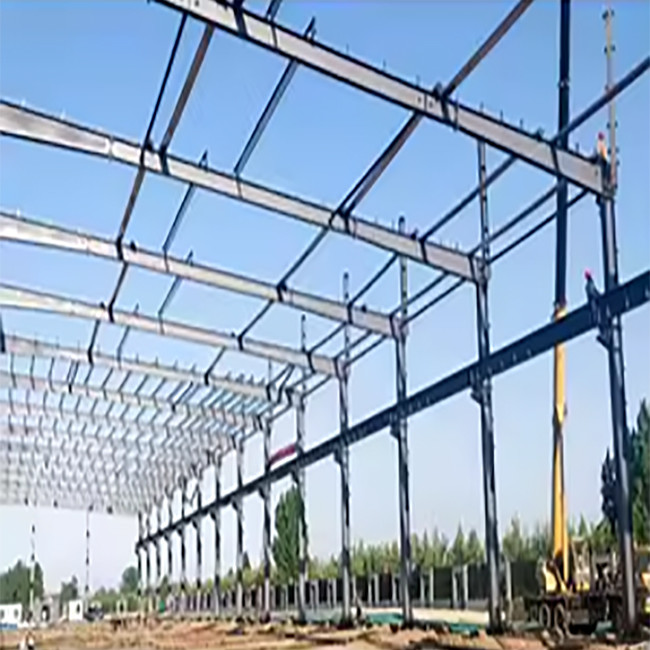

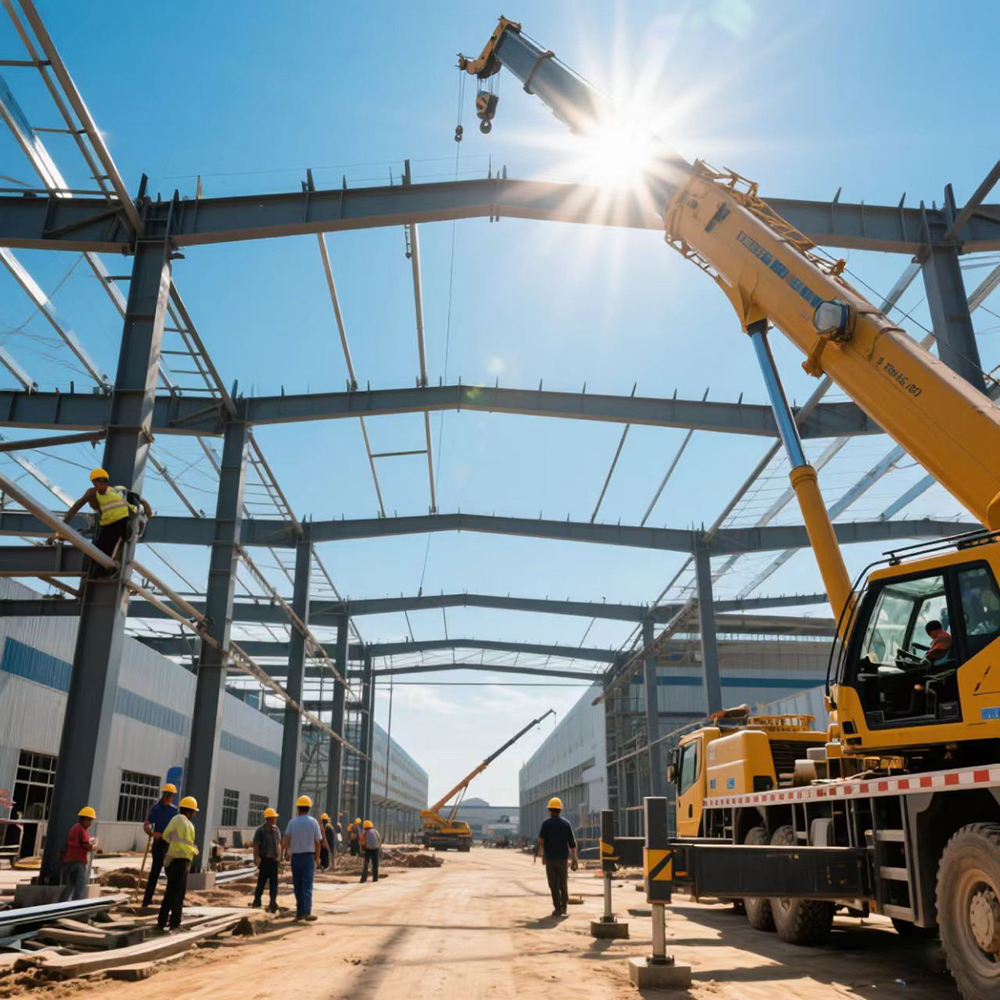

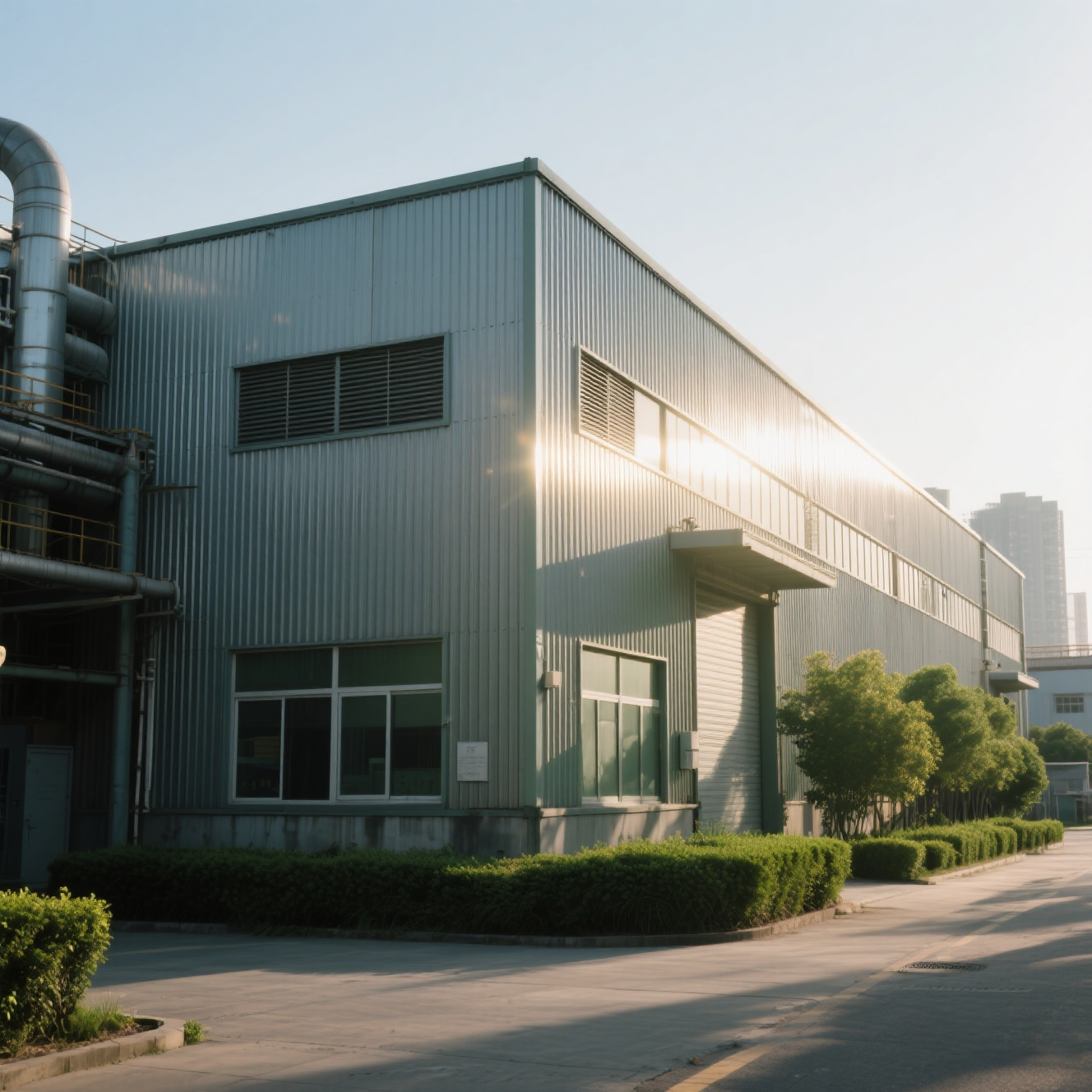

Product Images
Custom Prefabricated Steel Warehouse Building With High Strength Frame 0
Custom Prefabricated Steel Warehouse Building With High Strength Frame 1
Custom Prefabricated Steel Warehouse Building With High Strength Frame 2
Custom Prefabricated Steel Warehouse Building With High Strength Frame 3
