Prefab Residential Container Homes with Q355 Steel Frame

500-10000 square meters
MOQ
$35.00-$65.00
Price
Prefab Residential Container Homes with Q355 Steel Frame
Features Gallery Product Description Chat Now
Features
Specifications
Keyword: Residential Container Homes
Wall: 50mm/75mm Sandwich Panel
Structure: Steel Frame
Color: Optional
Function: Rotproof Waterproof Fireproof
Hvac System: Air Conditioner/Heater
Storey: Two Layer
Main Frame:: Q355 Q235
Window：: Aluminum Alloy Window
Door：: Sliding Door, Rolling Door
Wall & Roof:: Sandwich Panel; Color Steel Sheet
Secondary Structure：: Purlin; Brace, Knee Brace Etc
Cladding:: PU/Rock Wool/Fiberglass/EPS
Column & BeamConnection:: High Strength Bolt
Highlight:

Prefabricated Residential Container Homes

,

Residential Container Homes Q355

,

Q235 Container Module House
Basic Infomation
Place of Origin: CHINA,QINGDAO
Brand Name: YDX
Certification: CE ISO SGS
Model Number: YDX-00
Payment & Shipping Terms
Packaging Details: Exported standard packing
Delivery Time: 20-30 works days
Payment Terms: T/T
Supply Ability: 10000 tons/month
Product Description
Prefabricated Residential Container Homes Q355 Q235 Container Module House
Product Specifications
Attribute Value
Keyword Residential Container Homes
Wall 50mm/75mm Sandwich Panel
Structure Steel frame
Color Optional
Function Rotproof Waterproof Fireproof
HVAC System Air conditioner/Heater
Storey Two layer
Main Frame Q355 Q235
Window Aluminum Alloy window
Door Sliding Door, Rolling Door
Wall & Roof Sandwich Panel; Color Steel Sheet
Secondary Structure Purlin; Brace, Knee Brace Etc
Cladding PU/Rock Wool/Fiberglass/EPS
Column & Beam Connection High Strength Bolt
Product Overview
Our prefabricated container module houses offer versatile steel structural combinations tailored to residential needs. With flexible designs and easy assembly methods, these structures are suitable for diverse project requirements across different regions.
Key Features
  • Designed for multiple assembly/disassembly cycles without damage
  • Modular design allows flexible lifting, fixing, and combination
  • Superior heatproof and waterproof performance
  • Cost-effective with efficient transportation (4 units fit in one standard container)
  • Durable construction with 10-15 year service life
  • Optional installation, supervision, and training services available
Applications
These container homes are ideal for various uses including site offices, living quarters, meeting rooms, dormitories, retail spaces, restrooms, storage units, kitchens, and shower facilities. The lightweight materials prevent overload while ensuring easy packing and transportation.
Structural Details

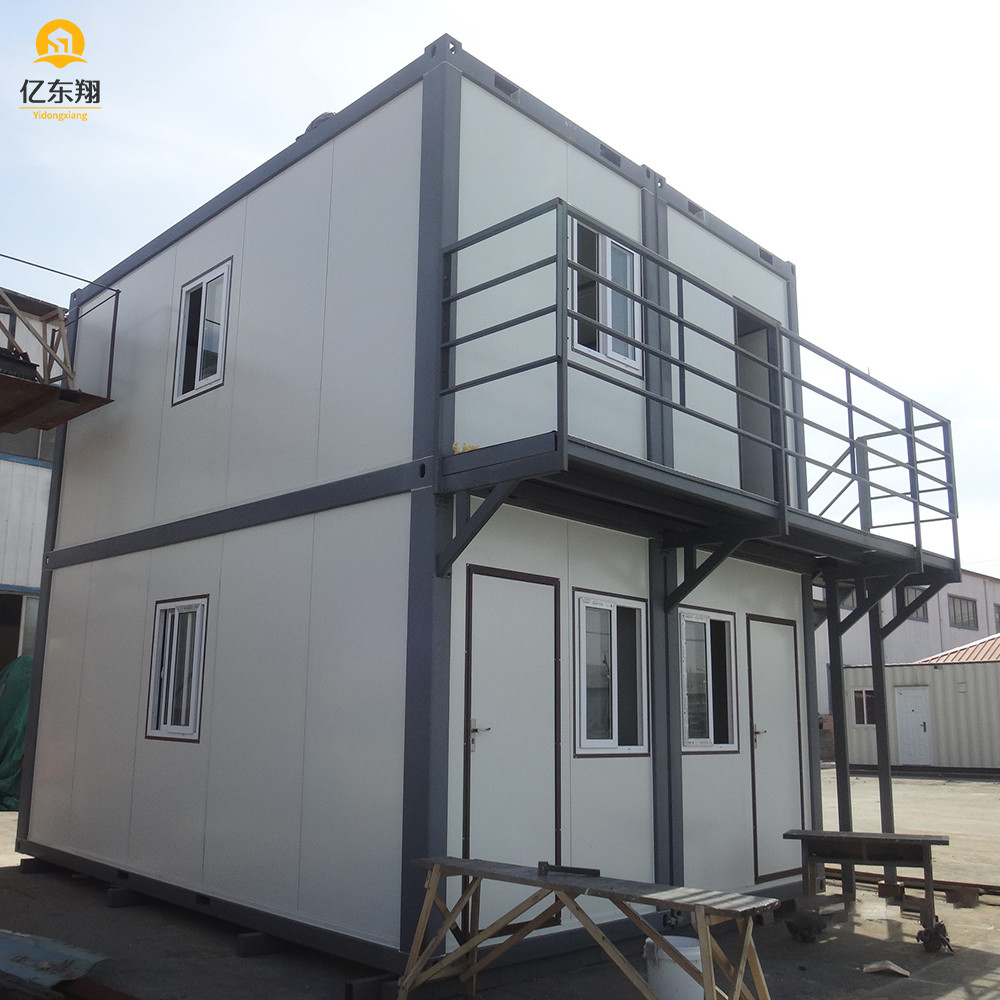

Standard flat pack container measures 6m × 3m × 2.89m, featuring EPS/IEPS/Rock wool sandwich panel walls and glass wool roofing. Installation requires just 6 workers for 2 hours per unit, with stacking capability up to 3 floors. Electrical systems include DB, breaker, power inlet, lights, sockets, and switches. The fully welded top frame with truss and bottom frame with supports guarantee structural integrity, while the total-sealed-top and corner-draining system prevents water leakage.

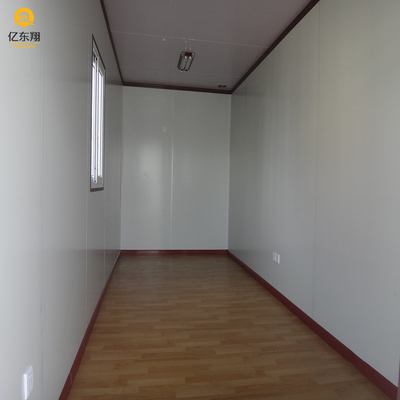

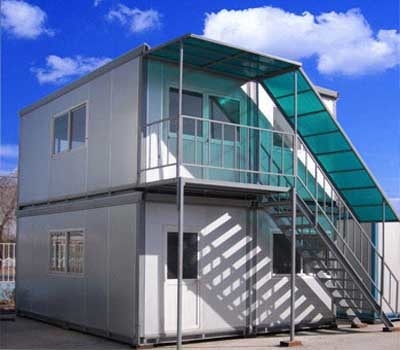

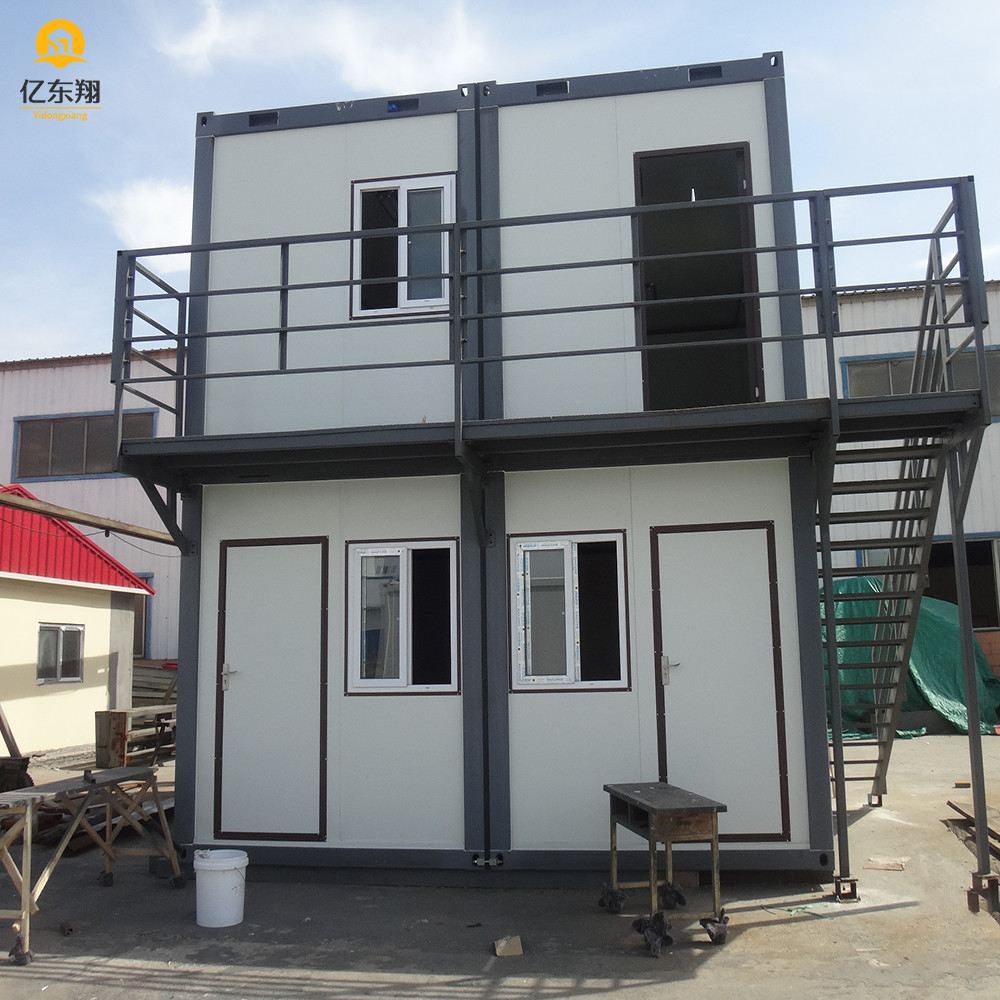

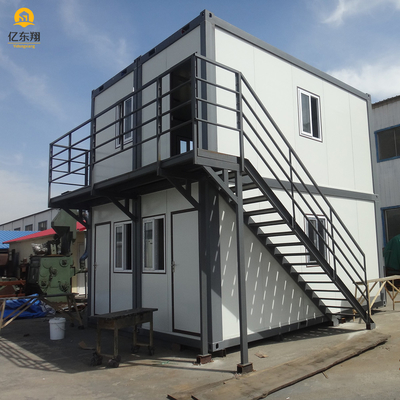

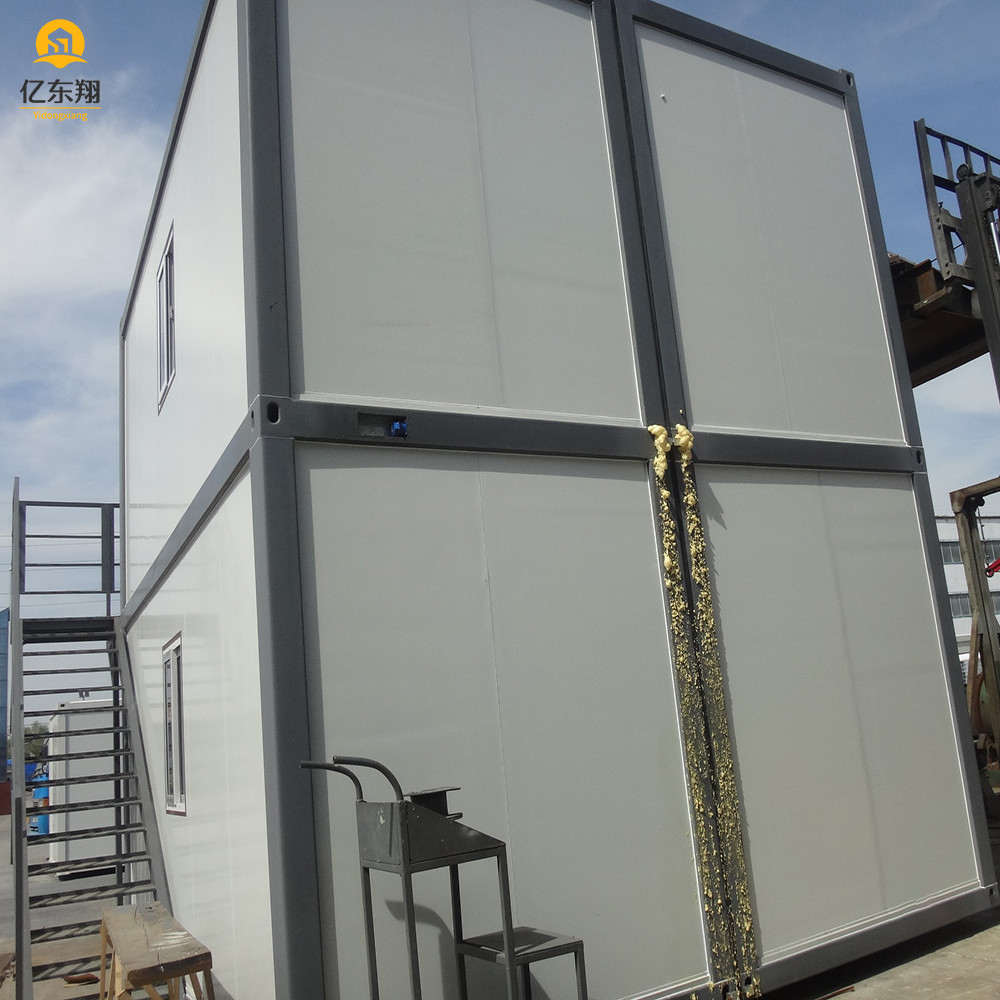

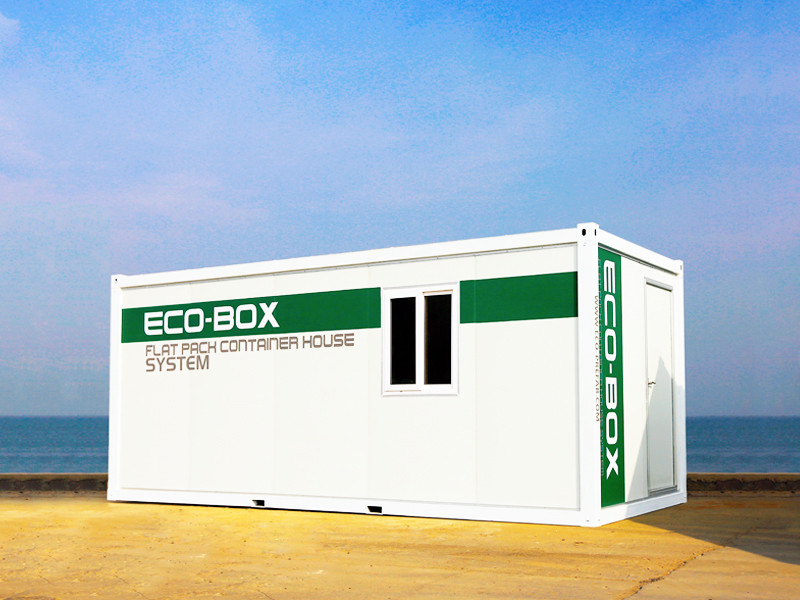

Prefab Residential Container Homes with Q355 Steel Frame 0 Prefab Residential Container Homes with Q355 Steel Frame 1 Prefab Residential Container Homes with Q355 Steel Frame 2 Prefab Residential Container Homes with Q355 Steel Frame 3 Prefab Residential Container Homes with Q355 Steel Frame 4 Prefab Residential Container Homes with Q355 Steel Frame 5
Component Specifications
Components Specification Note
Wall panel 50mm thick rock wool sandwich panel Hot-dip galvanized double side color steel 0.3mm
Main steel Frame Roof Frame 4 beams, 4 corner connectors, 80*40*1.2purlin, 0.45mm steel sheet
Bottom Frame 4 beams, 4 corner connectors, 9 square tube
Pillar 2.0mm 210*150
Bottom frame accessory Bottom flashing S type
Gate Security door Steel Security door
Window Window Aluminum alloy belt anti-theft window (custom size available)
Roof steel Roof tile Top steel sheet 0.45mm
Ceiling tile PVC ceiling buckle with installing accessory
Floor Bottom floor 18mm thick Cement board
Upper laying floor 1.6mm thick PVC tile
Water downpipe ∅50mm PVC downpipe
Accessories Installing and Sealing Screws, glass glue, layering, etc.
Insulation Glass wool Bag packing
