Prefabricated Steel Structure Hangar for Warehouse Workshop Factory

1-10000 square meters
MOQ
USD 30-100 per square meter/Negotiable
Price
Prefabricated Steel Structure Hangar for Warehouse Workshop Factory
Features Gallery Product Description Chat Now
Features
Specifications
Secondary Frame: Hot Dipped Galvanized Purlin
Wind Load: 200 Km/h
Wall Panel: EPS Sandwich Board And Steel Sheet
Usage: Warehouse, Workshop, Apartment, Factory
Types Of Aircraft: Helicopters/Gliders/Private/Military Use
Columns And Beam: H Section Column&Beam
Building: Prefabricated Steel Structure
Steel Type: Carbon Structural Steel
Surface Treatment: Painted Or Galvanized
Finishing: Painting Or Galvanization
Steel Beam: H Section Steel, Truss Beam
Highlight:

Prefabricated Lightweight Steel Frame Buildings

,

Warehouse Lightweight Steel Frame Buildings

,

Logistics Prefab Steel Frame Buildings
Basic Infomation
Place of Origin: CHINA
Brand Name: YDX
Certification: ISO,BV,CE
Model Number: YDX-SSH010
Payment & Shipping Terms
Packaging Details: STEEL PALLET OR SUITABLE FOR SEA SHIPPING
Delivery Time: 25 DAYS
Payment Terms: L/C,Western Union,MoneyGram,T/T
Supply Ability: 10000TON/MONTH
Product Description
Prefabricated Lightweight Steel Frame Buildings For Warehouse Rent Logistics Distribution
Product Attributes
Attribute Value
Secondary Frame Hot Dipped Galvanized Purlin
Wind Load 200 Km/h
Wall Panel EPS sandwich board and steel sheet
Usage Warehouse, Workshop, Apartment, Factory
Types Of Aircraft Helicopters/Gliders/Private/Military use
Columns And Beam H Section Column&Beam
Building Prefabricated Steel Structure
Steel Type Carbon Structural Steel
Surface Treatment Painted or Galvanized
Finishing Painting or Galvanization
Steel Beam H section steel, truss beam
Product Overview

The Steel Structure Hangar is a durable and reliable metal structure shed designed to provide secure storage solutions for various industrial and commercial applications.

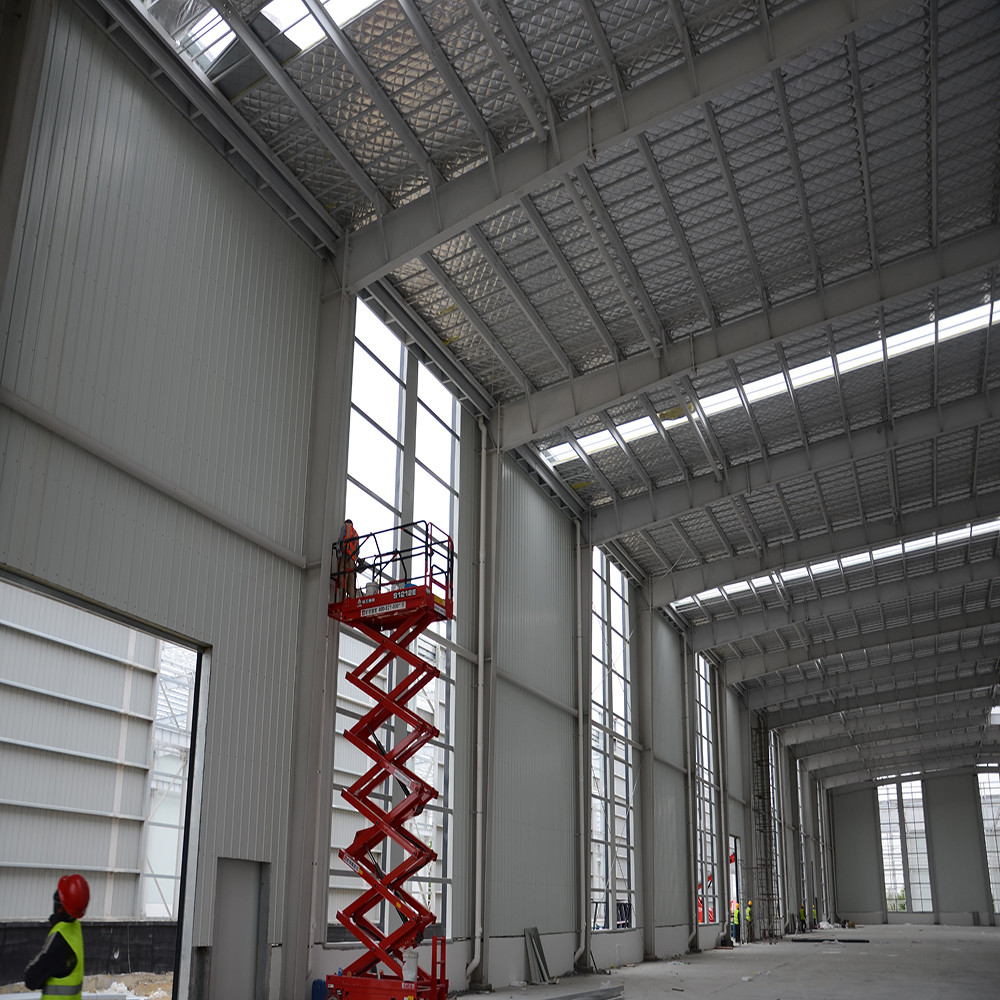

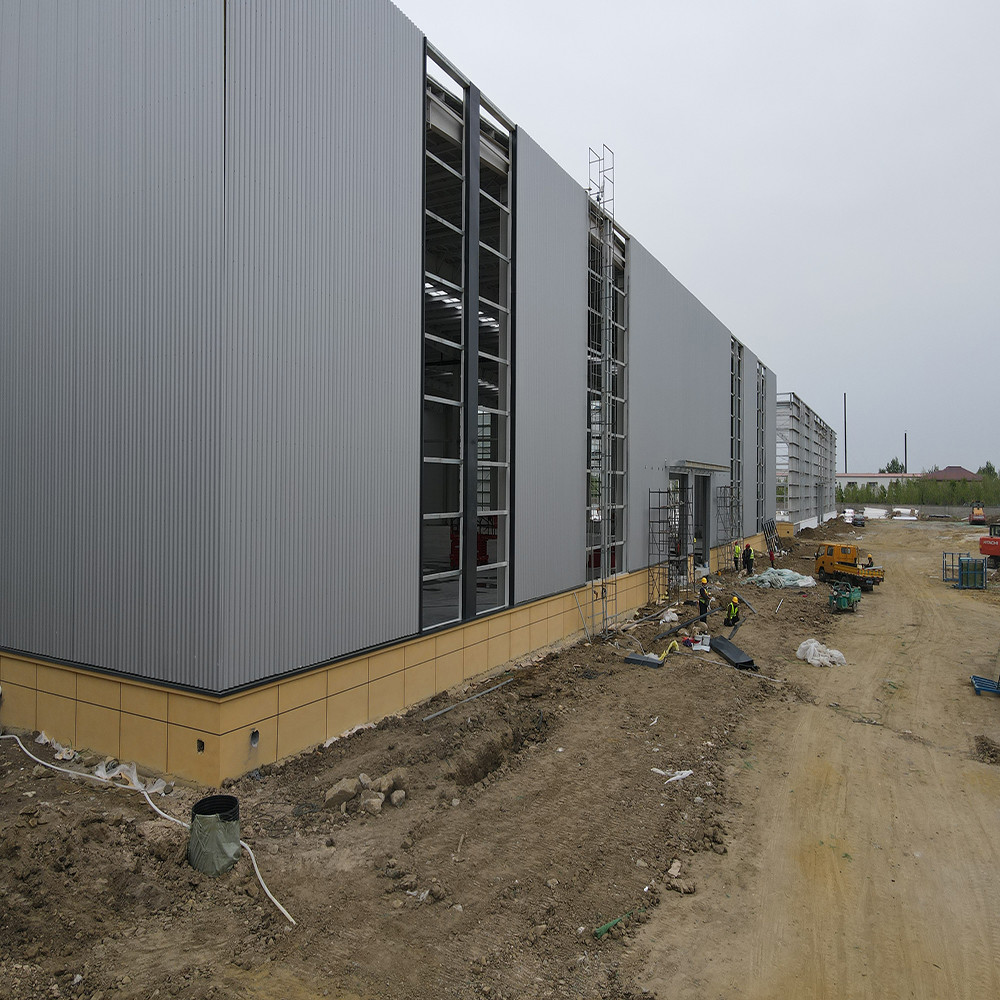

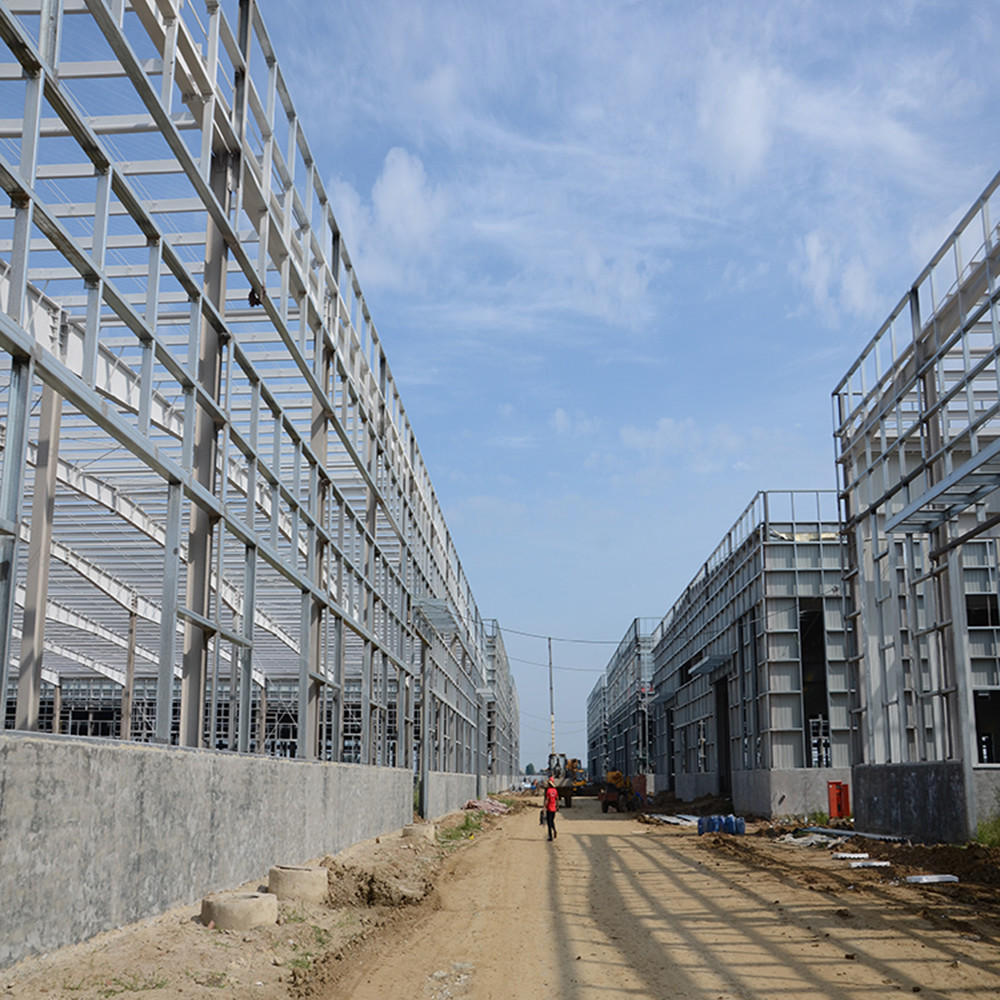

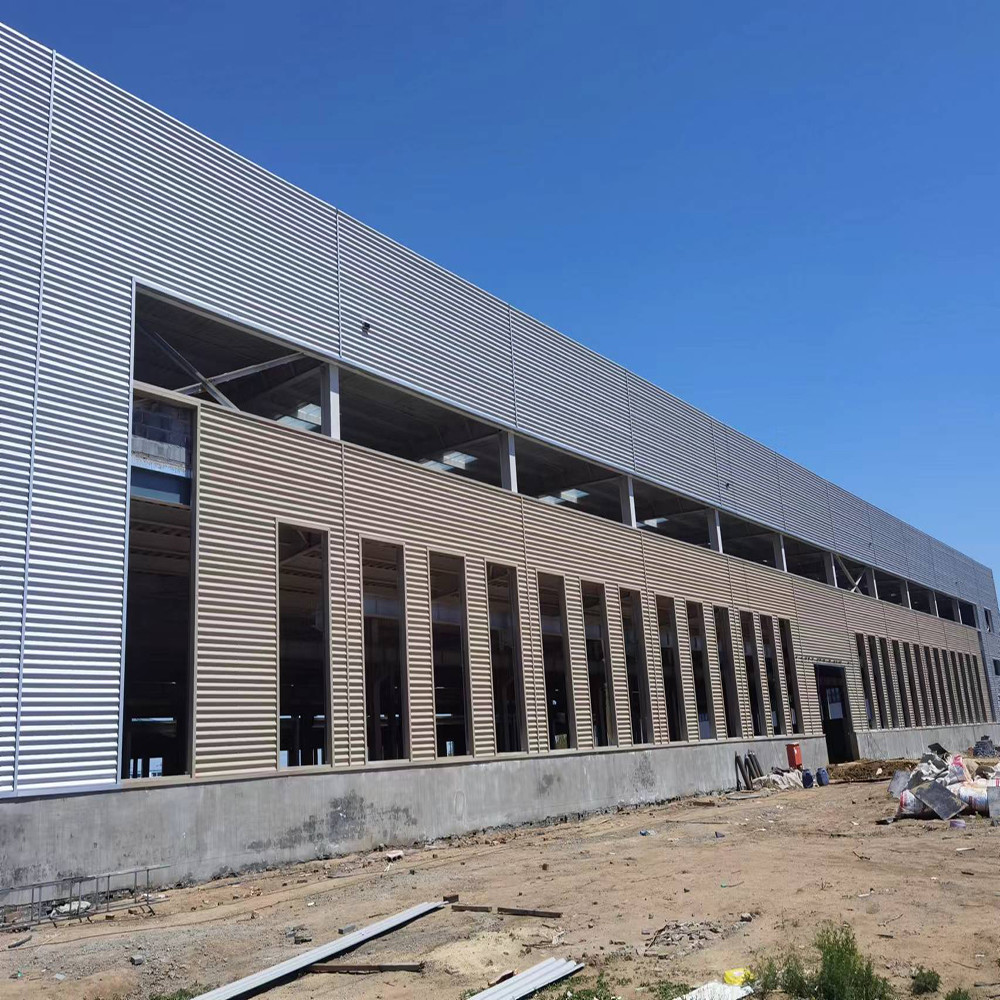

Prefabricated Steel Structure Hangar for Warehouse Workshop Factory 0 Prefabricated Steel Structure Hangar for Warehouse Workshop Factory 1 Prefabricated Steel Structure Hangar for Warehouse Workshop Factory 2 Prefabricated Steel Structure Hangar for Warehouse Workshop Factory 3
Building Component System

Our steel structure buildings feature a complete system including primary members (H steel), secondary members, roof and wall sheeting (or sandwich panel) connected to each other and various other building components. These buildings can be customized with:

  • Skylights and wall lights
  • Ventilation systems (turbo vents, ridge ventilators, louvers)
  • Doors & windows of various types
  • Trusses and mezzanine floors
  • Canopy and bridge crane options
  • Multiple insulation options
Technical Specifications
Component Specification
Main Steel Frame (Column & Beam) Q235, Q355 Welded H Section Steel
Secondary Frame (Purlin) Q235 C and Z purlin
Knee Brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical and Horizontal Support Q235 Angle Steel, Round Bar or Steel Pipe
Roof Panel EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel / Steel Sheet
Wall Panel Sandwich Panel / Corrugated Steel Sheet
Live Load on Roof 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade 12 Grades
Earthquake-resistance 8 Grades
Structure Usage Up to 50 years

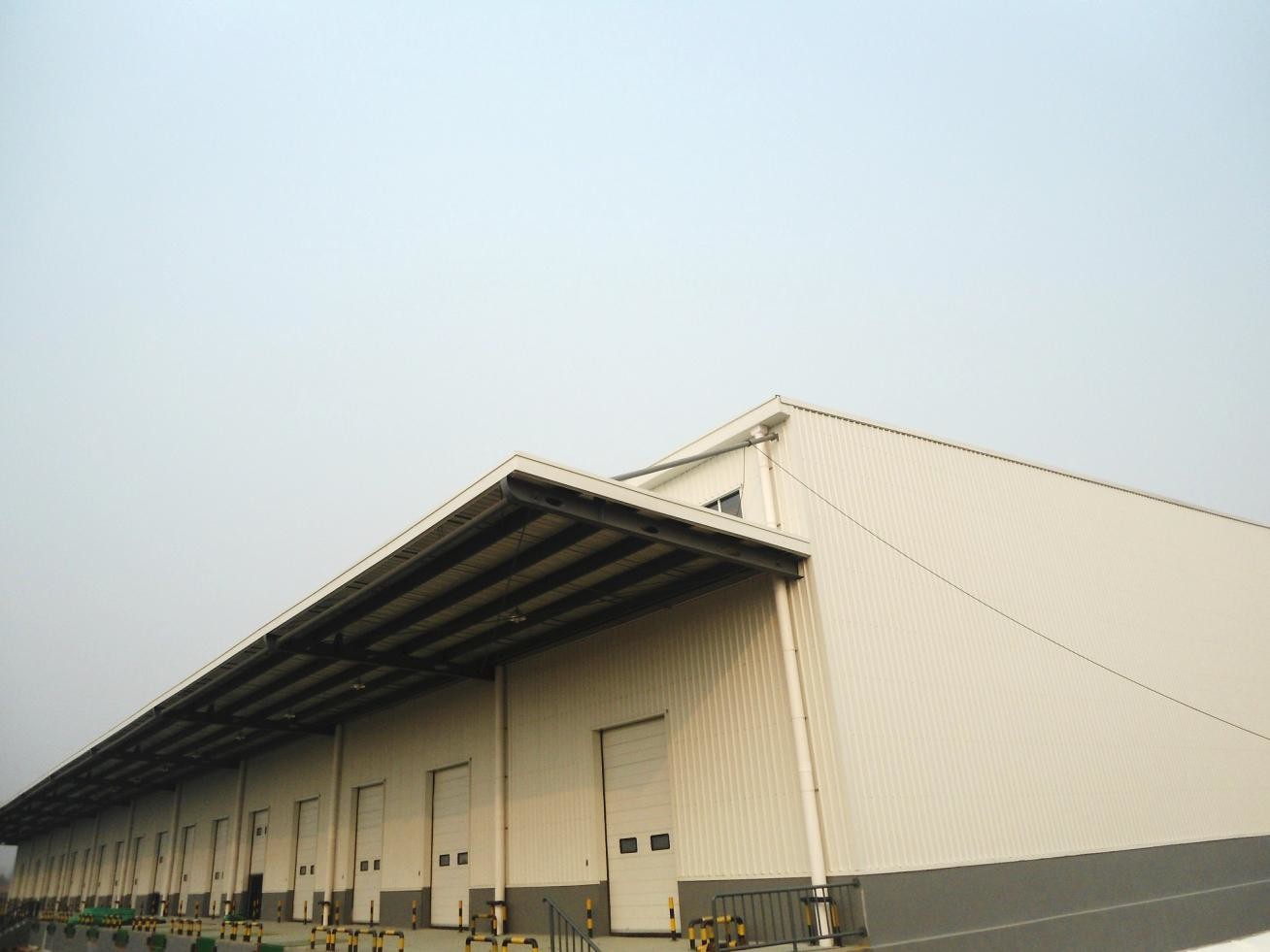

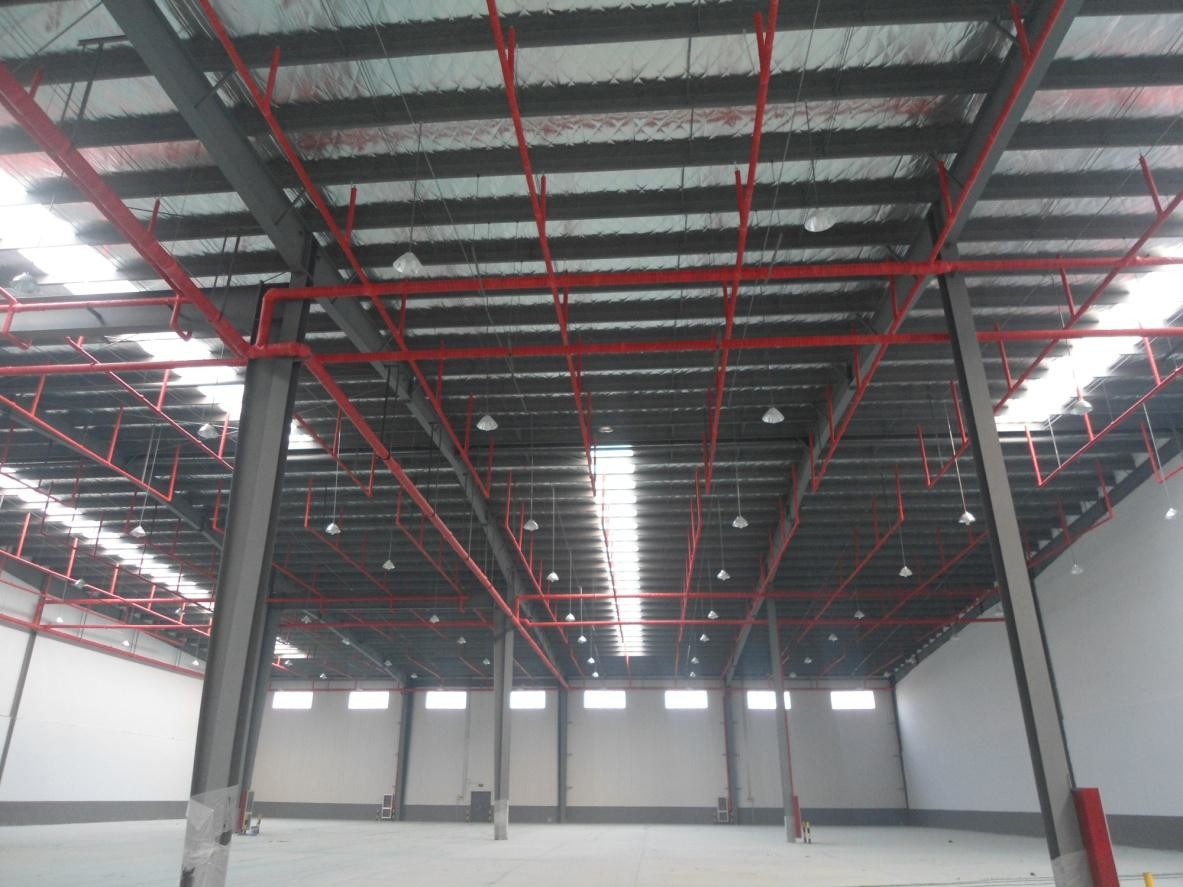

Prefabricated Steel Structure Hangar for Warehouse Workshop Factory 4 Prefabricated Steel Structure Hangar for Warehouse Workshop Factory 5
Key Features
  • Lightweight yet high strength construction with large span capabilities
  • Short construction period reducing investment costs
  • High fire resistance and strong corrosion resistance
  • Eco-friendly with easy relocation and no pollution recovery
  • Low investment with excellent economic benefits
  • Versatile applications including factories, warehouses, workshops, and more
Customization Options

We offer comprehensive customization services including:

  • Various steel textures (Q235B, Q345B)
  • Multiple connection methods (bolt and welded)
  • Different secondary frame options
  • Wide range of finishing and paint options
  • Custom design services using SAP2000, AutoCAD, PKPM, 3D3S, TEKLA
Frequently Asked Questions
What kind of company are you?

We are a steel structure building manufacturer located in Qingdao, China, with a strong reputation for quality products and professional service.

Are you a factory or trading company?

We operate our own 150,000 square meter factory, allowing us to offer competitive pricing and quality control.

What quality assurance do you provide?

We implement strict quality control procedures at all manufacturing stages, from raw materials to finished products.

Do you offer design services?

Yes, our team of 100+ design engineers can create complete solutions using industry-standard software.

Do you provide installation support?

We offer overseas installation guidance, supervision, and training through our professional technical team.
