Home /Products/Pre Engineered Building/Q355 Q235B Prefab Steel Structure Building Customizable Design

Q355 Q235B Prefab Steel Structure Building Customizable Design

1-10000 square meters
MOQ
$35.00-$63.00
Price
Q355 Q235B Prefab Steel Structure Building Customizable Design
Features Gallery Product Description Chat Now
Features
Specifications
Flexibility: High
Keyword: Steel Structure Pre-engineered Building
Size: Client Requirements
Main Frame: Welded H-shape Steel Beam, Column
Roofing: Sandwich Panel,Single Steel Sheet
Grade: Q355, Q235B
Roof Cladding: Steel Color Sheet, Sandwich Panel
Structure Type: Steel Structure
Highlight:

Q355 Steel Pre Fab Building

,

Q235B Steel Pre Fab Building

,

Prefabricated Steel Frame House Customized
Basic Infomation
Place of Origin: CHINA,QINGDAO
Brand Name: YDX
Certification: CE ISO SGS
Model Number: YDX-A9A
Payment & Shipping Terms
Packaging Details: Exported standard packing
Delivery Time: 20-30 works days
Payment Terms: T/T
Supply Ability: 10000 tons/month
Product Description
Q355 Q235B Steel Pre Fab Building Steel Structure Prefabricated Steel Frame House Customized
Product Specifications
Flexibility High
Size Client Requirements
Main Frame Welded H-shape Steel Beam, Column
Roofing Sandwich Panel, Single Steel Sheet
Grade Q355, Q235B
Roof Cladding Steel Color Sheet, Sandwich Panel
Structure Type Steel Structure
Product Overview

Prefabricated steel structures are modern construction systems where pre-engineered steel components are manufactured off-site and assembled on-site. These buildings are renowned for their speed, sustainability, and adaptability, making them a cornerstone of industrial, commercial, and residential projects globally.

Key Advantages
Rapid Construction Reduces build time by 30-60% compared to traditional methods
Cost Efficiency Lower labor, material waste, and logistics costs due to standardized production
Durability Resistant to corrosion, pests, fire (with coatings), and seismic activity
Sustainability Recyclable materials and energy-efficient designs align with LEED certification
Flexibility Modular components allow easy expansion or reconfiguration
Materials & Installation
Core Materials
Material Components Role
Structural Steel Beams, columns, trusses Forms the primary load-bearing framework (ASTM A36/A572 grades)
Cladding Insulated panels, corrugated sheets Weatherproofing and thermal insulation (galvanized steel, aluminum)
Fasteners High-strength bolts, welded joints Secures components with precision (ISO 898-1 standards)
Foundation Concrete footings, anchor bolts Distributes structural loads and stabilizes the building
Coatings Epoxy, zinc-rich primers Enhances corrosion resistance and longevity
Installation Workflow
Stage Key Steps Tools/Equipment
Design & Simulation 3D BIM modeling, load analysis, and code compliance checks AutoCAD, Tekla, Revit
Fabrication CNC cutting, robotic welding, and surface treatment in controlled factories Laser cutters, CNC machines
Transport Optimized logistics for oversized components (e.g., trusses, panels) Flatbed trucks, cranes
Assembly Sequential erection using cranes; bolting/welding per engineering specs Mobile cranes, hydraulic lifts
Finishing Installation of utilities, cladding, and safety systems (fire alarms, HVAC) Scaffolding, welding torches
Features & Applications
Distinctive Features
  • Lightweight yet Strong: High strength-to-weight ratio enables large spans (e.g., 60m+ for warehouses)
  • Customizable: Adjustable dimensions, layouts, and aesthetics (e.g., curved roofs, glass facades)
  • Low Maintenance: Minimal upkeep due to corrosion-resistant materials
  • Energy Efficiency: Integration of solar panels and insulated cladding reduces energy consumption
  • Disaster Resilience: Ideal for earthquake-prone or hurricane-affected regions
Industry Applications
Sector Use Cases Examples
Industrial Factories, warehouses, power plants Automotive assembly lines, cold storage units
Commercial Offices, retail spaces, hotels Multi-story malls, modular office pods
Residential Apartment towers, modular homes High-density urban housing, vacation cabins
Public Infrastructure Airports, stadiums, bridges Roof structures for sports arenas
Agriculture Barns, greenhouses, equipment sheds Livestock shelters, vertical farming systems
Technical Specifications
  • Primary Framing: Box beam column, cross steel column, H-shaped steel column, steel beam
  • Secondary Framing: Galvanized Z and C sections purlin
  • Roof and Wall panels: Steel sheet and insulated sandwich panels (EPS, fiberglass wool and PU)
  • Steel Decking Floor: Galvanized steel decking board
  • Structural subsystem: Divider, gutter, awning, partition wall
  • Service Life: 50-70 years
  • Grade: Q235B, Q355B or as per customer's need
  • Connection: Intensive bolt, ordinary bolt
Customization Options

We welcome customized designs. To provide an accurate quotation and drawings, please provide:

  • Building dimensions (length, width, eave height)
  • Local weather conditions (wind speed, snow load)
  • Door and window specifications
  • Insulation material preferences
  • Any special requirements (crane beams, fire proofing, etc.)

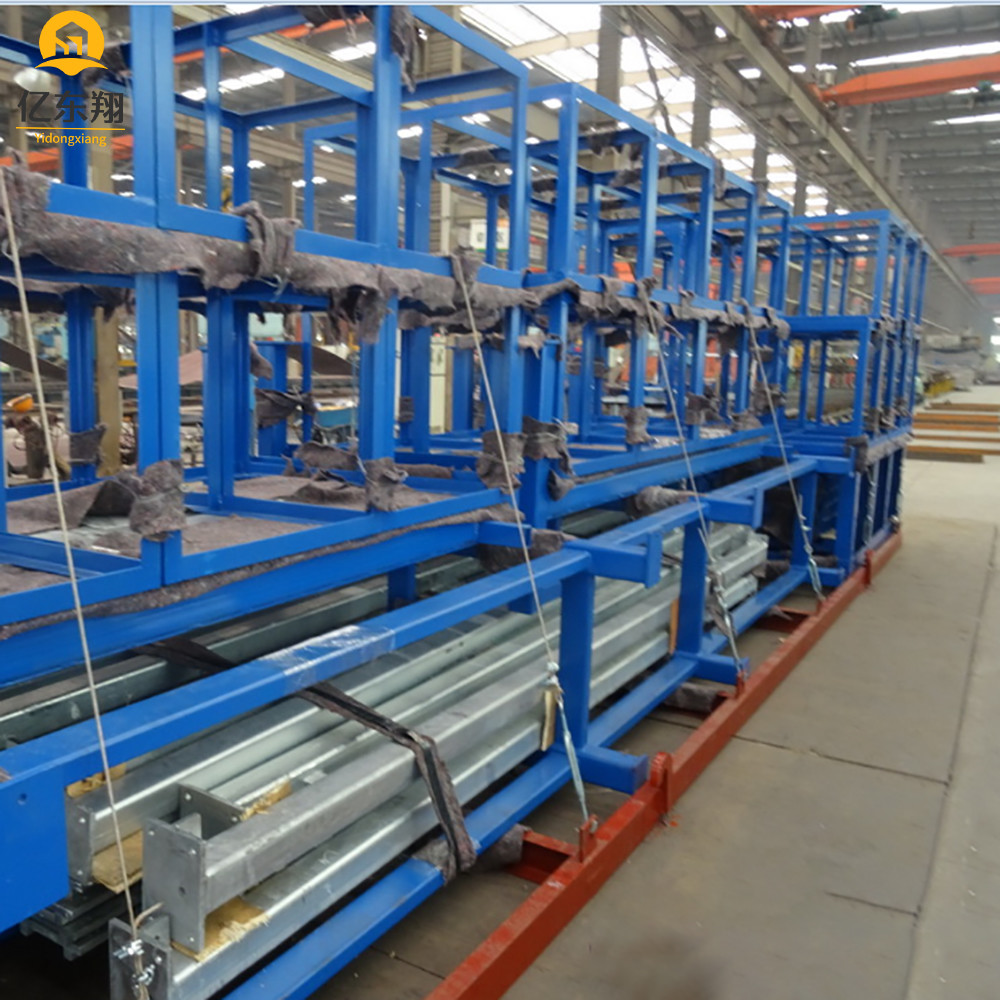

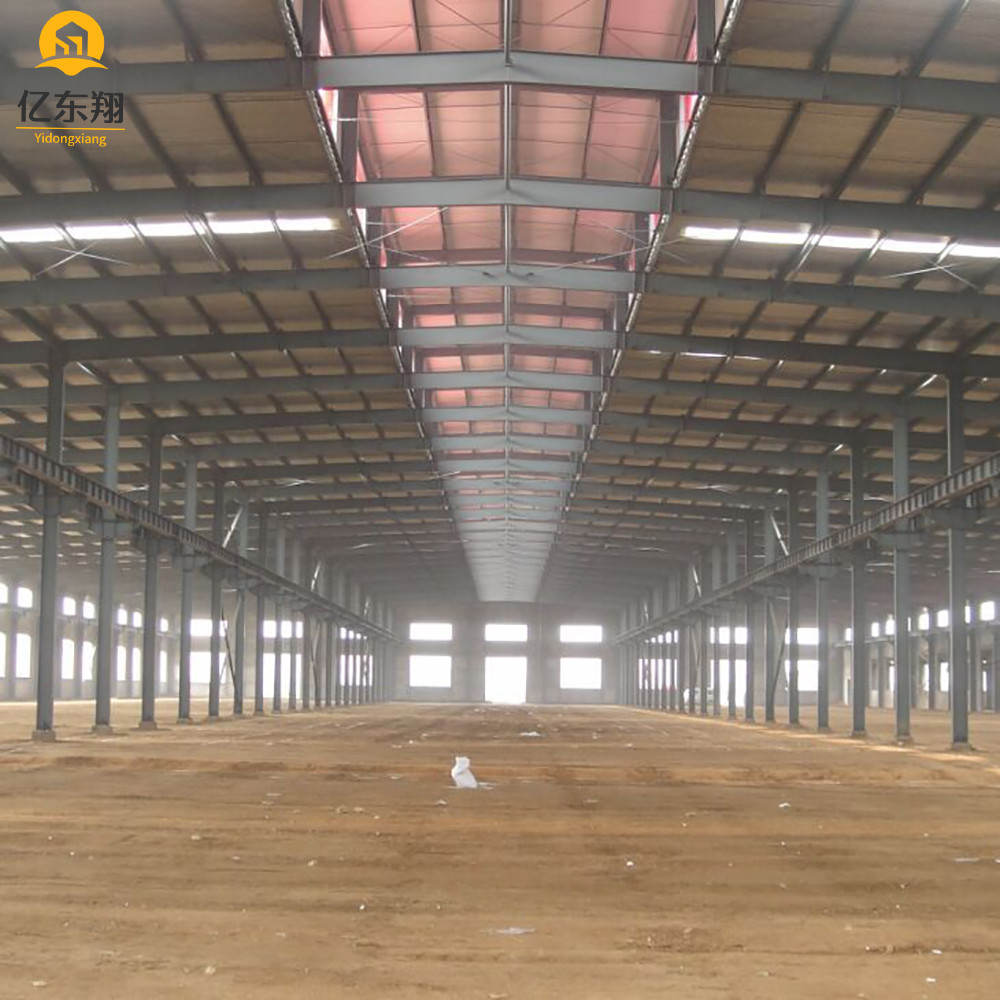

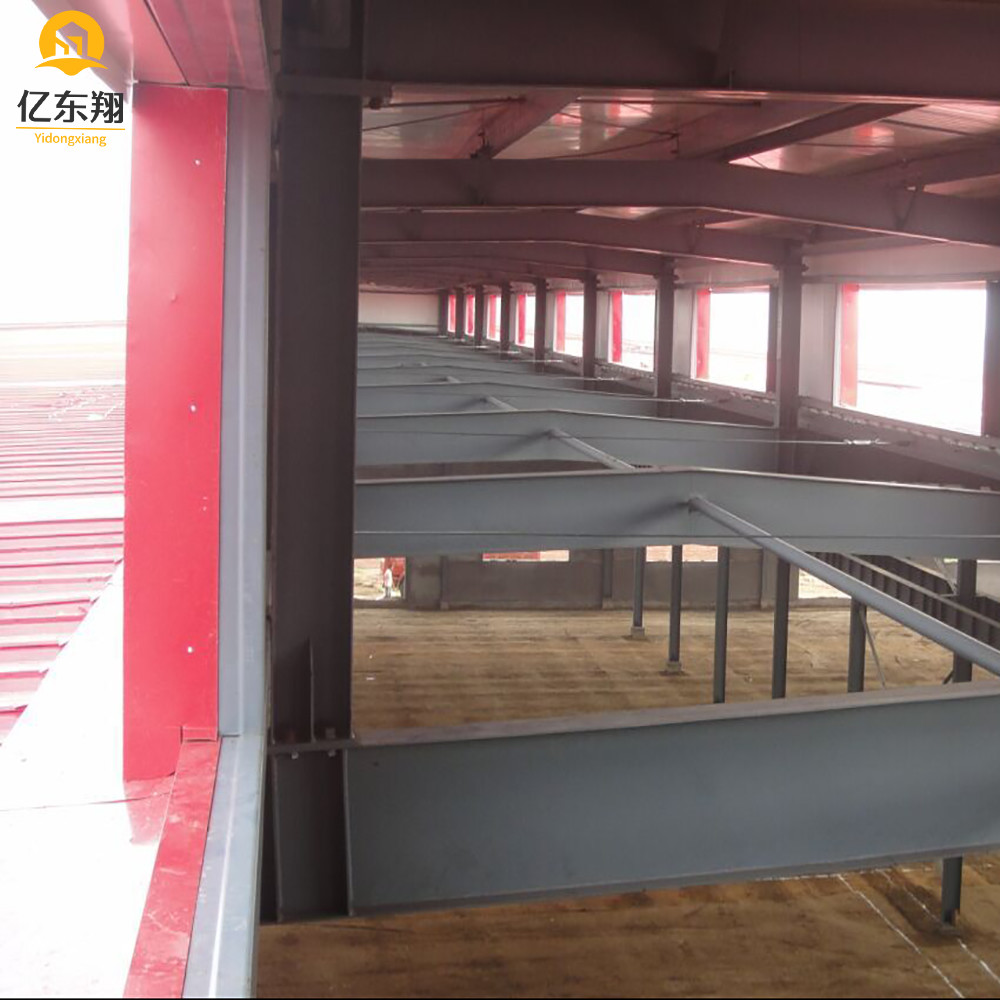

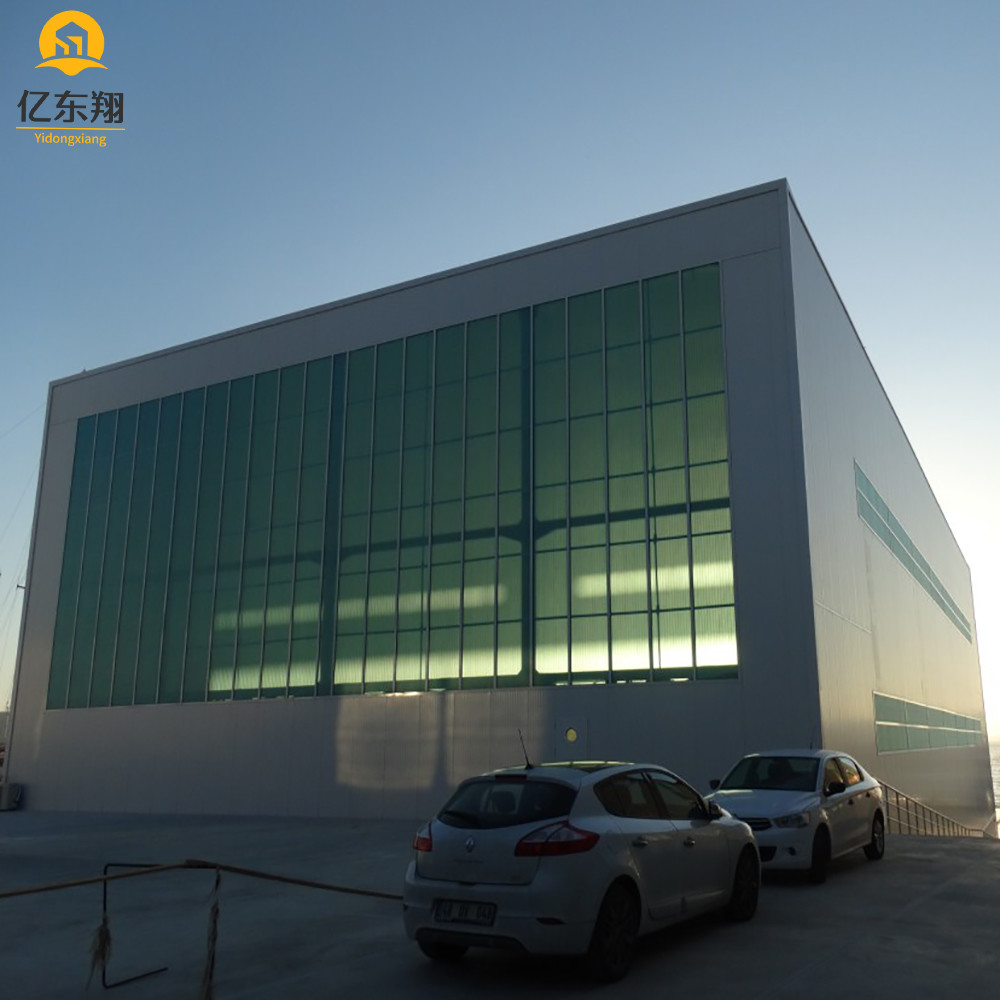

Product Gallery
Q355 Q235B Prefab Steel Structure Building Customizable Design 0 Q355 Q235B Prefab Steel Structure Building Customizable Design 1 Q355 Q235B Prefab Steel Structure Building Customizable Design 2 Q355 Q235B Prefab Steel Structure Building Customizable Design 3 Q355 Q235B Prefab Steel Structure Building Customizable Design 4 Q355 Q235B Prefab Steel Structure Building Customizable Design 5 Q355 Q235B Prefab Steel Structure Building Customizable Design 6 Q355 Q235B Prefab Steel Structure Building Customizable Design 7 Q355 Q235B Prefab Steel Structure Building Customizable Design 8 Q355 Q235B Prefab Steel Structure Building Customizable Design 9 Q355 Q235B Prefab Steel Structure Building Customizable Design 10
Our Services
  • Custom design plans and competitive quotations based on your requirements
  • Experienced engineering team providing optimal solutions
  • Comprehensive services including design, manufacturing, installation, and after-sales support
  • Optional on-site installation guidance and training by our engineers
  • Detailed professional installation drawings and 24-hour online support
Quality Control Process
  • Weekly quality audit meetings to address processing weaknesses
  • Bi-weekly employee training sessions
  • Production according to International Steel Structure Standards with ISO 9001 Quality Control System
  • Monthly client feedback collection for continuous improvement
  • Quality inspection reports for every production process
Frequently Asked Questions
What kind of Industry Steel Workshop do you need?

Our experienced engineers can design buildings to your exact specifications. We take your building investment as seriously as you do.

Are you manufacturer or trade company?

We are professional manufacturers of steel structure buildings.

Do you offer guiding installation on site overseas for warehouse building?

Yes, we can provide installation, supervision, and training services. We will dispatch engineers to guide assembly work and provide detailed installation drawings with 24-hour online support.

What's the quality assurance you provide and how do you control quality?

Our professional QC team monitors quality at all manufacturing stages. We also accept third-party international inspections (SGS, BV, etc.).

Could you offer designing service?

We have a complete engineering team using state-of-the-art design software (Tekla, AutoCAD, etc.). We provide preliminary costing and design at no extra cost.

Is there any warranty available on the steel structure buildings?

Our steel structures have a long lifespan (50-100 years) depending on material quality, design standards, construction quality, and maintenance.
