Modern Pre Engineered Steel Building with Sandwich Panel Cladding

1-10000 square meters
MOQ
$35.00-$65.00
Price
Modern Pre Engineered Steel Building with Sandwich Panel Cladding
Features Gallery Product Description Chat Now
Features
Specifications
Name: Modern Pre Engineered Buildings
Roof Cladding: Steel Color Sheet, Sandwich Panel
Material: Steel
Wall: Sandwich Panel,Single Steel Sheet
Steel Types: Q235, Q345, And Other Low-alloy High-strength Steels.
Main Frame: Q355 Q235
Window: Aluminum Alloy Window
Door: Sliding Door, Rolling Door
Wall & Roof: Sandwich Panel; Color Steel Sheet
Secondary Structure: Purlin; Brace, Knee Brace Etc
Cladding: PU/Rock Wool/Fiberglass/EPS
Column & BeamConnection: High Strength Bolt
Advantage: Easy & Fast Install
Highlight:

Modern Pre Engineered Buildings

,

Pre Engineered Building Lightweight

,

Prefabricated Steel Fabrication Building
Basic Infomation
Place of Origin: CHINA,QINGDAO
Brand Name: YDX
Certification: CE ISO SGS
Model Number: YDX-00
Payment & Shipping Terms
Packaging Details: Exported standard packing
Delivery Time: 20-30 works days
Payment Terms: T/T
Supply Ability: 10000 tons/month
Product Description
Modern Pre Engineered Buildings Lightweight Prefabricated Steel Fabrication Building
Product Specifications
Attribute Value
Name Modern Pre Engineered Buildings
Roof Cladding Steel Color Sheet, Sandwich Panel
Material Steel
Wall Sandwich Panel, Single Steel Sheet
Steel Types Q235, Q345, and other low-alloy high-strength steels
Main Frame Q355 Q235
Window Aluminum Alloy window
Door Sliding Door, Rolling Door
Wall & Roof Sandwich Panel; Color Steel Sheet
Secondary Structure Purlin; Brace, Knee Brace Etc
Cladding PU/Rock Wool/Fiberglass/EPS
Column & Beam Connection High Strength Bolt
Advantage Easy & Fast Install
High Quality Prefabricated Steel Structure Fabrication Building
Prefabricated steel structure buildings are scientifically designed construction solutions where steel components are factory-manufactured and transported to sites for rapid assembly. These efficient structures are ideal for large-span buildings, high-rise constructions, and temporary facilities.
Material Properties
  • Steel: Q235, Q345 low-alloy high-strength steels offering high strength-to-weight ratio, corrosion resistance (with surface treatment), and recyclability
  • Roof/Wall Panels: Color steel plates and sandwich panels providing lightweight, waterproof, insulated, fireproof, and durable solutions
  • Connectors: High-strength bolts and welding materials ensuring robust, corrosion-resistant connections
  • Protective Coatings: Anti-corrosion and fireproof treatments that extend service life while meeting environmental standards
Structural Components
  • Primary Framing: Box beam columns, cross steel columns, H-shaped steel columns and beams
  • Secondary Framing: Galvanized Z and C section purlins
  • Floor Systems: Galvanized steel decking boards
  • Structural Subsystems: Dividers, gutters, awnings, and partition walls
Key Features
  • Rapid Construction: Factory prefabrication enables fast on-site assembly
  • Sustainable: Recyclable materials minimize construction waste
  • Design Flexibility: Accommodates large spans and complex architectural requirements
  • Cost-Effective: Lower long-term maintenance costs despite higher initial investment
  • Durability: 50-70 year service life with proper maintenance
Applications
  • Industrial: Factories, warehouses, workshops
  • Commercial: Shopping malls, exhibition halls, offices
  • Residential: Modular housing, temporary accommodations
  • Public: Stadiums, airports, transportation infrastructure
Additional Specifications
Place of Origin: Qingdao, Shandong, China
Steel Grades: Q235B, Q355B or custom specifications
Bolt Grades: M20, M16, M14 standard connections
Cladding Options: EPS, PU, fiberglass, or rock wool insulation
Accessories: Sliding/rolling doors, aluminum/PVC windows, louvers
Customization Service
We provide customized design solutions. For accurate quotations and drawings, please provide:
  • Building dimensions (length, width, eave height)
  • Local weather conditions
  • Specific application requirements

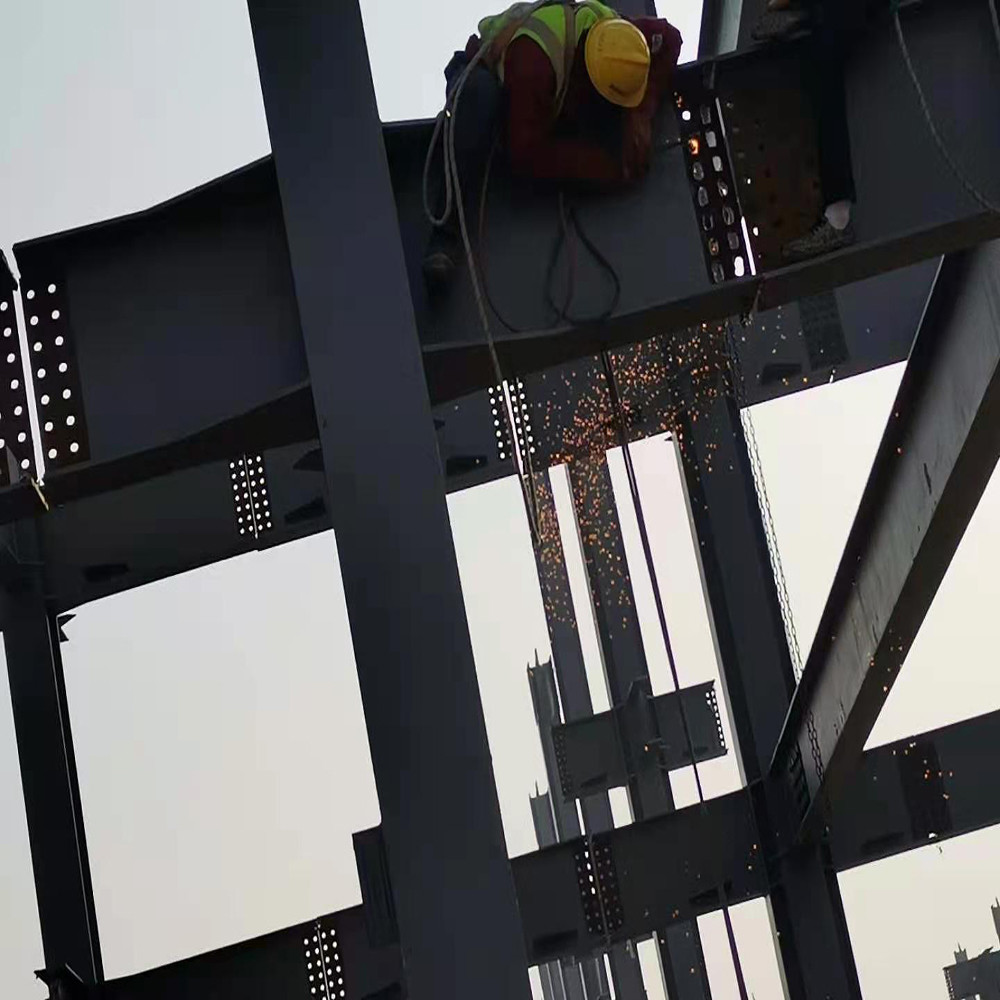

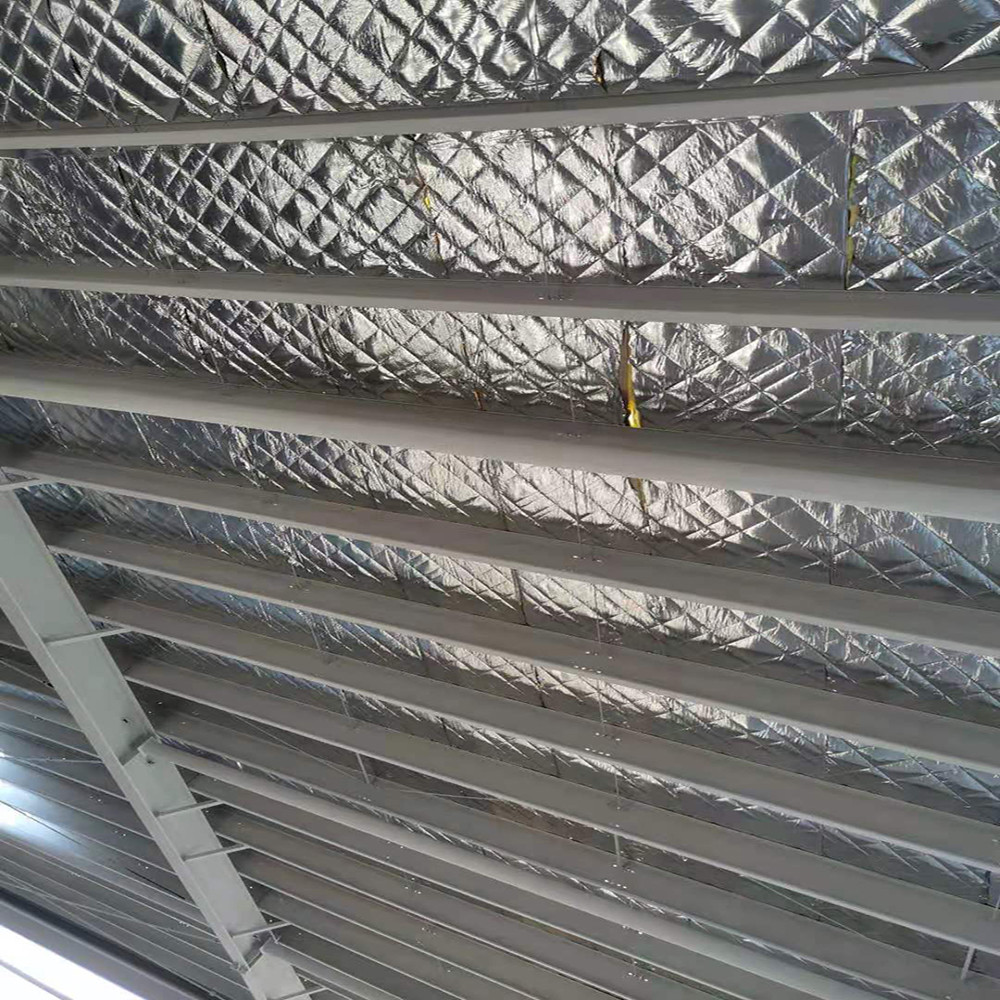

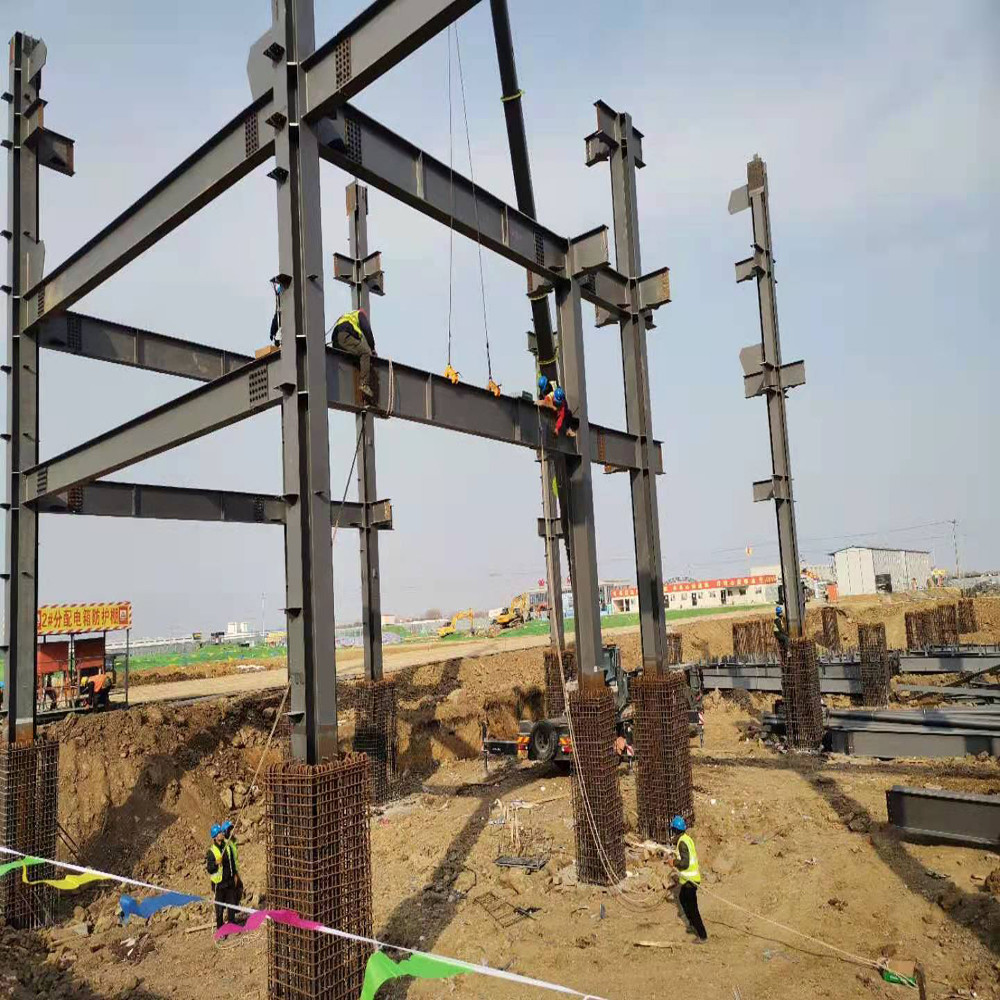

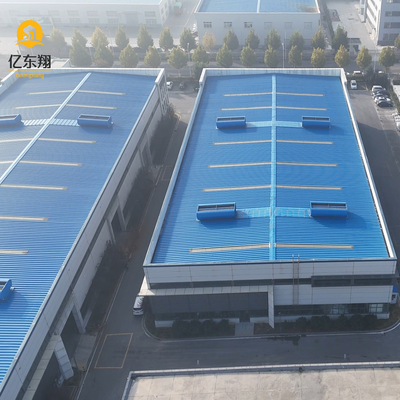

Modern Pre Engineered Steel Building with Sandwich Panel Cladding 0 Modern Pre Engineered Steel Building with Sandwich Panel Cladding 1 Modern Pre Engineered Steel Building with Sandwich Panel Cladding 2 Modern Pre Engineered Steel Building with Sandwich Panel Cladding 3
