H Beam Steel Structure Poultry House with Q235 Q345 Frame

Steel-structure poultry houses are modern agricultural facilities designed for efficient, large-scale poultry farming (chickens, ducks, geese, etc.). Utilizing steel frameworks (e.g., H-beams, cold-formed thin-walled steel) as the primary load-bearing structure, these buildings integrate modular design, advanced insulation, automated systems, and biosecurity measures. They are widely adopted to meet the demands of high-density farming, environmental sustainability, and animal welfare in the 21st century.

• High Strength: Steel's tensile strength withstands extreme weather (typhoons, heavy snow) and long-term mechanical loads.
• Corrosion Resistance: Galvanized coatings or anti-rust treatments extend lifespan to 30-50 years, outperforming traditional brick-wood structures.
• Seismic Resilience: Flexible steel frameworks reduce damage risks in earthquake-prone areas.

• Modular Prefabrication: Factory-made components enable on-site assembly within 1-3 weeks, minimizing weather-related delays.
• Design Flexibility: Adjustable spans (8-30m) and heights accommodate diverse farming scales, equipment layouts, and automation needs.

• Thermal Insulation: Polyurethane/PIR sandwich panels reduce heat loss by 30-50%, optimizing temperature control.
• Renewable Integration: Solar panels on rooftops or facades cut energy costs; rainwater harvesting systems support sustainable water use.
• Recyclability: Steel is 100% recyclable, reducing construction waste and carbon footprint.

• Smooth Surfaces: Seamless steel walls and floors prevent pathogen buildup, simplifying disinfection.

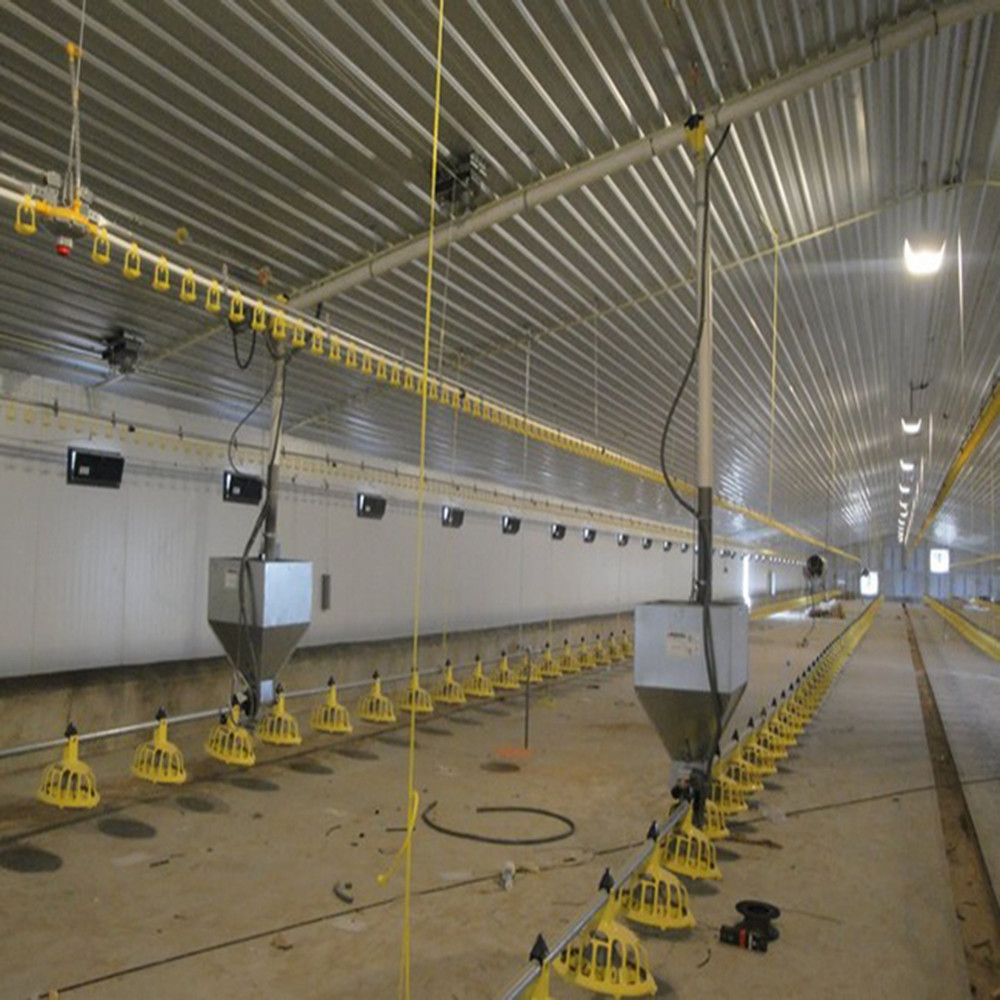

• Smart Farming: Automated feeding, egg collection, and manure removal systems enhance efficiency while minimizing human-poultry contact.
• Ventilation Systems: Negative-pressure ventilation maintains ammonia levels below 25ppm, ensuring air quality.

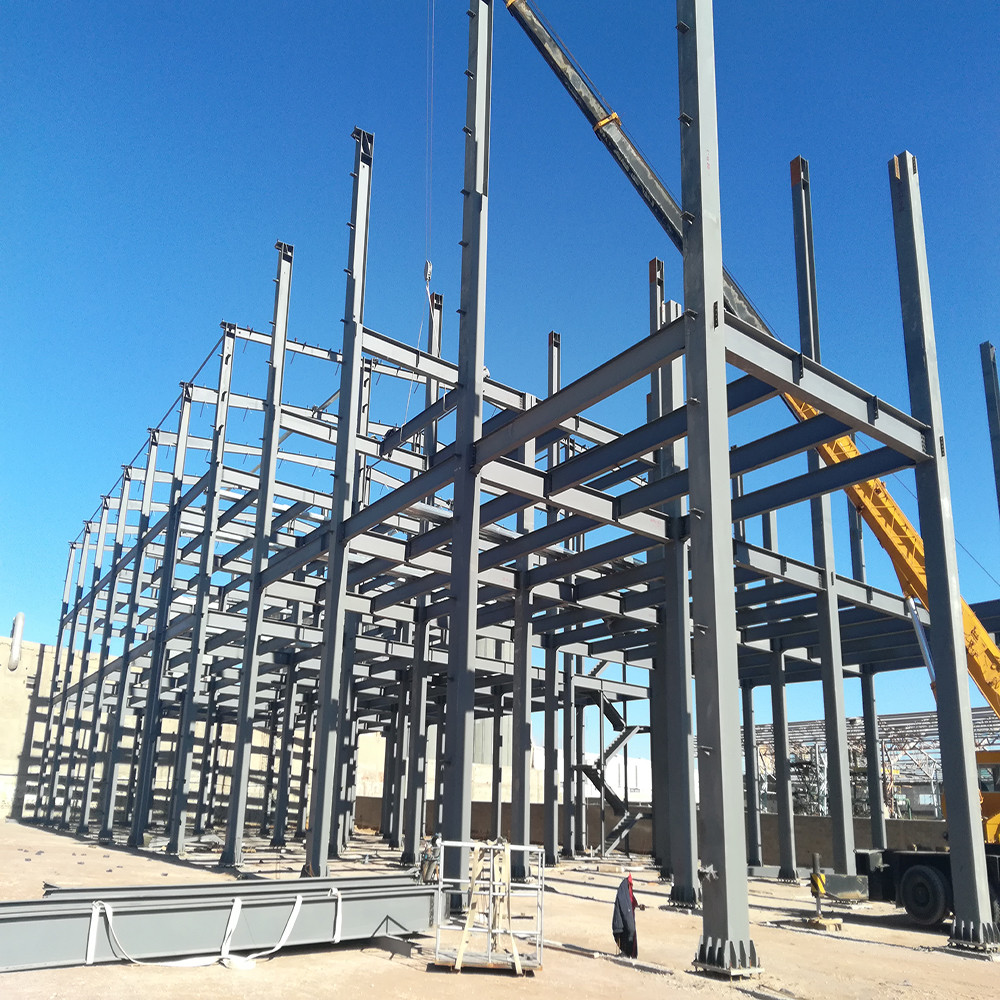

• Steel column: Q235,355B H section steel, Round tube or square tube
• Steel beam: Q235,355B H section steel
• Steel purlin: C/Z section purlin
• Roof material: Corrugated steel sheet/sandwich panel
• Wall material: Corrugated steel sheet/sandwich panel
• Door: Steel door
• Window: Aluminium window

Throughout the year the use of mechanical negative pressure ventilation, ventilation in the Poultry house and other system facilities are better, mostly for automatic feeding and automatic manure removal system, artificial light, good heat preservation. The temperature, humidity and air quality in the house are basically close to the standard, which is suitable for the production of poultry. In the winter ventilation management appears slightly more relaxed.

Same ventilation method. The construction cost is low, and the whole structure is made of steel frame and glass fiber cotton. The air inlet is made of PVC pipe with a diameter of 10 centimeters and a length of 1 meter (The air inlet is closed in summer and properly opened in winter).

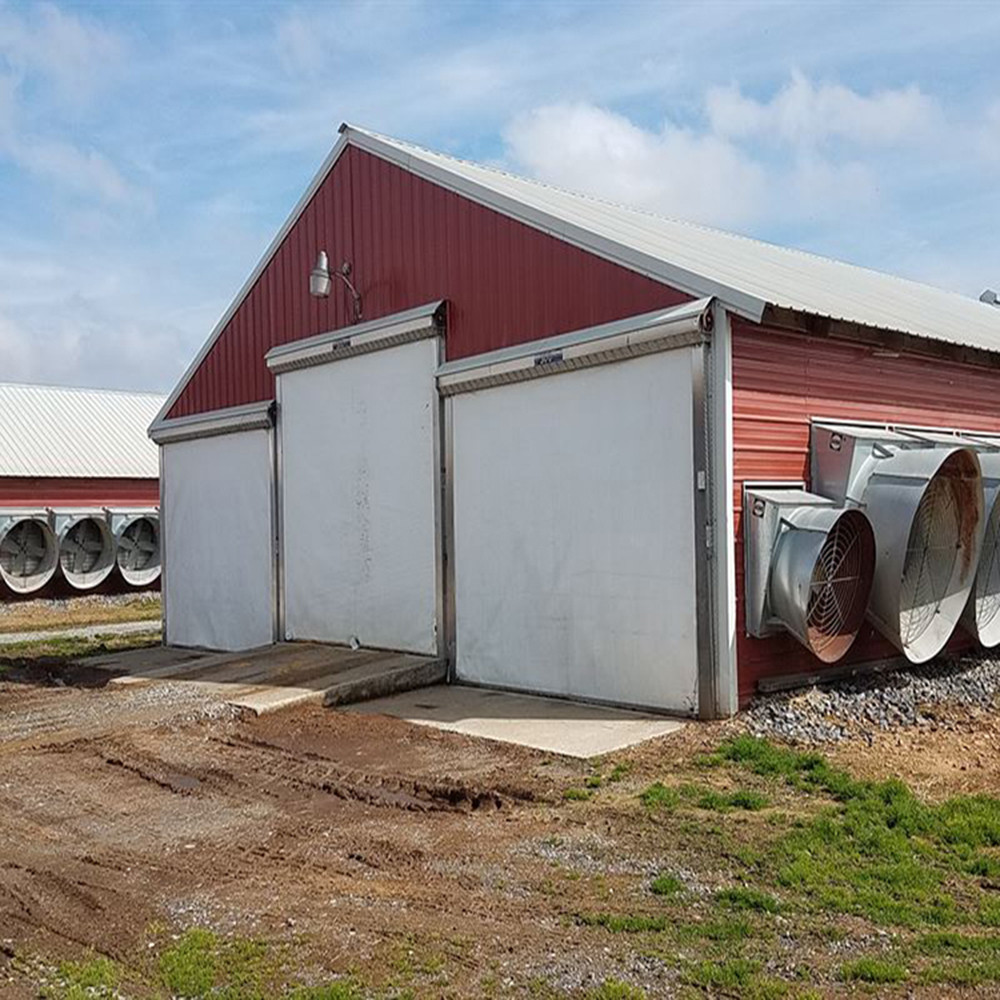

There are exhaust fan water curtain or exhaust fan without water curtain, closed doors and Windows can use mechanical negative pressure ventilation in summer, and natural ventilation is given priority to in other seasons. Poultry house facilities are better automatic feeding and automatic manure removal system, the use of natural light and artificial light combination.

All the year round by natural ventilation, no exhaust fan without water curtain, simple infrastructure, feeding and manure removal by manual completion. Use natural light and artificial light combination.

We would offer you the proposed design plan and the most valuable quotation based on the parameter of the following information:

• Building Dimension: Length*width*height, eave height, roof type etc.
• Doors and windows: Dimension, quantity, position to put them if you have your own requirements.
• Local climate: Wind speed, snow load, earthquake etc.
• Insulation material for roof and wall: Sandwich panel or single metal sheet.
• Crane if have: Do you need crane beam inside the steel structure? And its capacity.
• If have other requirements, such as fire proofing, isolated roof, roof ventilation and daylighting etc, please kindly inform us.

In accordance with your requirement, our experienced engineers would provide the best program.

We would give the best service to our client, including design, manufacturing, installation and after-sale service etc. We can provide the service of installation, supervision, and training by extra. We will dispatch our engineers team to your country to guide the assemble work, and we will provide the detailed professional installation drawings and guide installation service team keep 24-hour online service, they will help you to install your steel structure building.

• Every one week meeting for Quality Audit to solve the weakness during processing and procedures
• Every two weeks meeting for employee training.
• Producing as to the International Steel Structure Standard with ISO 9001 Quality Control System
• Each project, every 1 months, connect with clients for feedback and complaints, then improve the quality control actions.
• Quality inspection report for every process during production. Ensure 100% good quality products.
