Prefab Steel Structure Commercial Building with Sandwich Panels

1TON
MOQ
USD760-1000/TON
Price
Prefab Steel Structure Commercial Building with Sandwich Panels
Features Gallery Product Description Chat Now
Features
Specifications
Name: Steel Structure Commercial Building
Main Steel Frame: Q235 H Steel Or Box Shape Column
Wall &roof Clading: Sandwich Panel With Glass Curtain Wall For Wall, Roof Sandwich Panels
Building Type: Commercial Building
Application: Commercial Building
After-sales Service: Guide Installation Or Install The House On Site
Transport Package: Steel Pallet And Shipping In Container
Highlight:

Modern Steel Structure Commercial Building

,

Prefab Steel Structure Commercial Building

,

Modern Prefab Commercial Buildings
Basic Infomation
Place of Origin: CHINA
Brand Name: YDX
Certification: ISO,BV,SGS,CE
Model Number: YDXC123
Payment & Shipping Terms
Packaging Details: All steel structures components are consolidated in steel pallets
Delivery Time: 25 DAYS
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 10000TON/MONTH
Product Description
Modern Prefab Steel Structure Commercial Building / Metal Frame Building Construction
Product Specifications
Attribute Value
Name Steel Structure Commercial Building
Main steel frame Q235 H steel or box shape column
Wall & roof cladding Sandwich panel with glass curtain wall for wall, roof sandwich panels
Building Type Commercial Building
Application Commercial building
After-sales Service Guide Installation or Install The House on Site
Transport Package Steel Pallet and Shipping in Container
Product Description
Our steel structure commercial buildings are ideal for exhibition halls, showrooms, and 4S car shops, offering durable and flexible construction solutions.

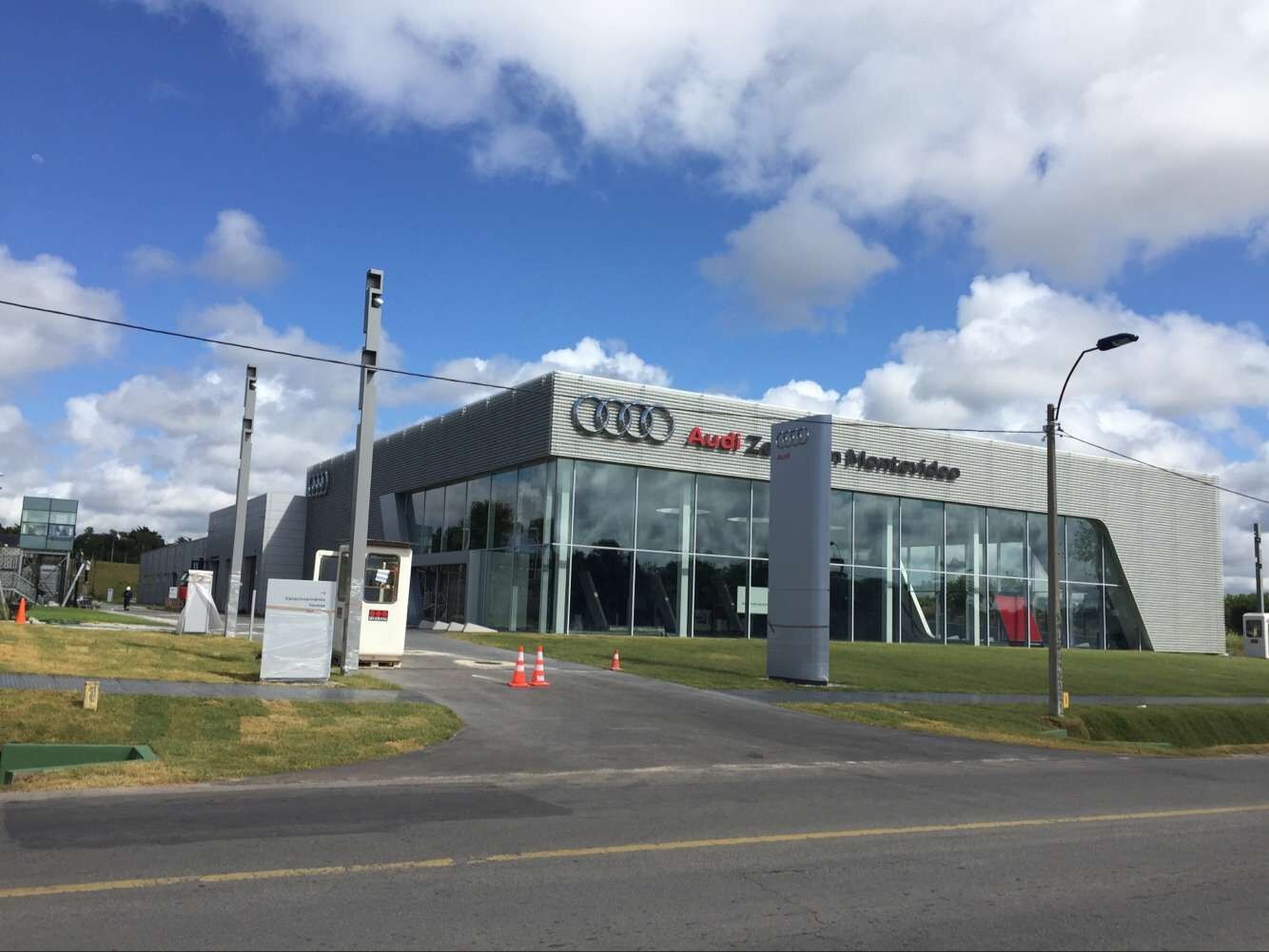

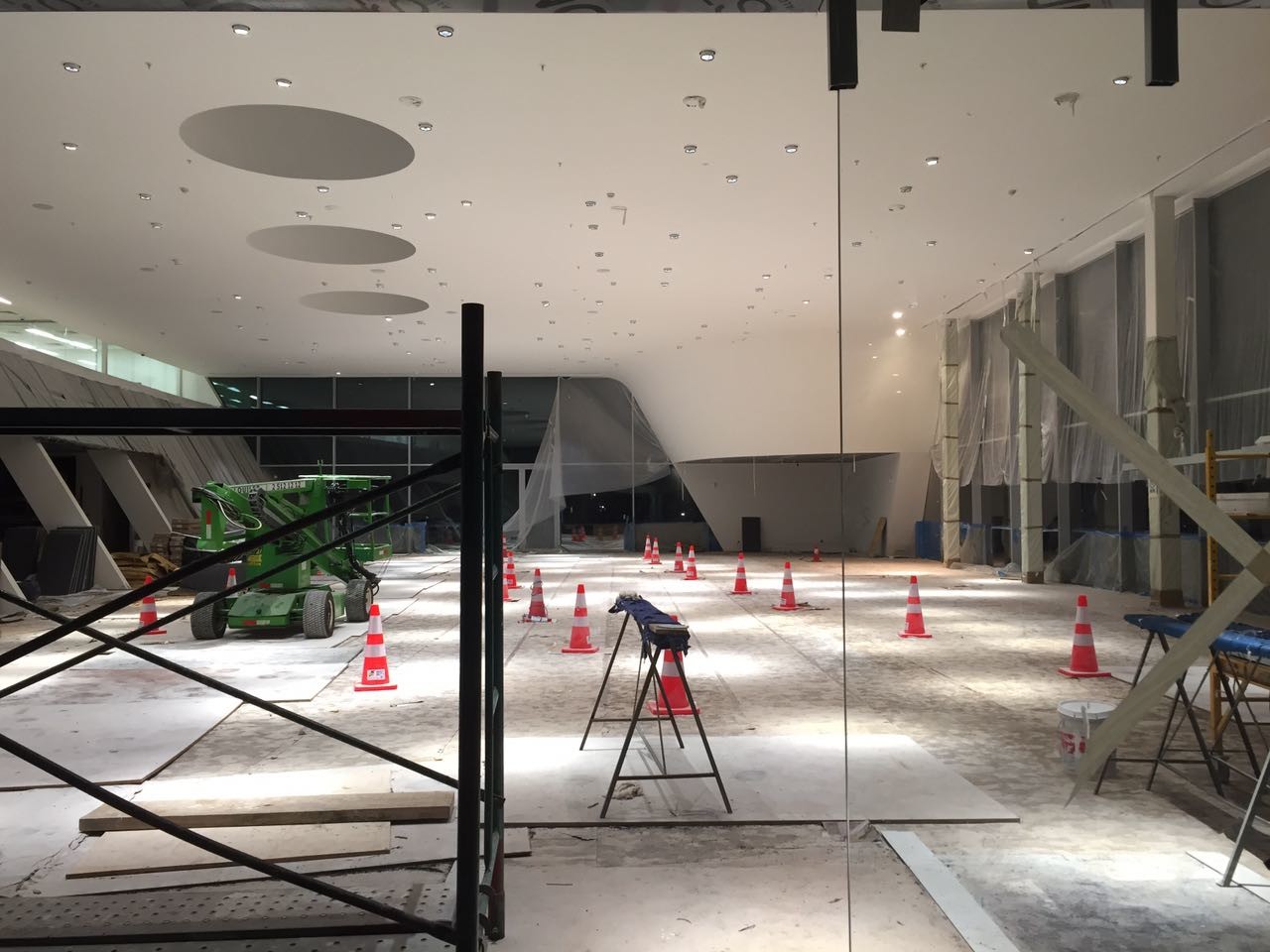

Case 1: 4S Car Shop
Features: Frame-support structure with composite floor of pressed steel plate and external glass curtain wall.
Advantages: Short construction period, high space utilization, and modern appearance.
Technical Components
Component Specifications
Embedded Parts
Anchor Bolt M30*1050
High Strength Bolt M20,10.9S
Common Bolt M20
Galvanized Bolt M12
Shear Nail M19*80
Tir Rod Φ12
Brace Rod Φ32*2.5
Self-tapping Screw M5
Main Steel Structure
Steel Column (Q355B) H500X250X8X12, H450X220X8X12, H300~700X250X6X10
Wind Column (Q355B) H400X200X6X8
Roof Frame Beam (Q355B) H700~450X200X6X10, H450X200X6X10
Main Beam (Q355B) H600X220X8X14
Secondly Beam (Q355B) HN346X174X6X9
Ring Beam (Q235B) 100*1.8
Stairs [20U-steel+3mm Riffled plate
Roof Purlin (Q235B) C120*50*20*2.0
Tir Bar (Q235B) Φ140*4.0
Column Brace Φ140*4.0
Horizontal Brace Φ25 Round bar
Angle Brace L50*4.0
Wall Purlin (Q235B) C220X70X20X2.2
Connecting Panel (Q355B) 6-20MM steel panel
Other Components
Rolling Gate (including motor) 4000X3500X2 PCS, 3200X3500X1 PCS
Aluminum Louvers 1m high
Grating + Hand rail 1m high
Floor Deck 1.0Thickness 880#
Damper 2.0Thickness Galvanized panel
Roof Panel 50mm Thickness rock sandwich panel
External Wall panel 50mm Thickness rock sandwich panel
Trimming 0.5 thickness
Down pie (including parts) φ110PVC
Gutter (including parts) 1.2 Thickness of stainless gutter
Prefab Steel Structure Commercial Building with Sandwich Panels 0
Prefab Steel Structure Commercial Building with Sandwich Panels 1
Prefab Steel Structure Commercial Building with Sandwich Panels 2
Prefab Steel Structure Commercial Building with Sandwich Panels 3
Prefab Steel Structure Commercial Building with Sandwich Panels 4
Prefab Steel Structure Commercial Building with Sandwich Panels 5
Case 2: Container House Coffee Shop
Prefab Steel Structure Commercial Building with Sandwich Panels 6
Prefab Steel Structure Commercial Building with Sandwich Panels 7
Case 3: Container House Garden
Prefab Steel Structure Commercial Building with Sandwich Panels 8
Case 4: Steel Structure Building for Sports
Prefab Steel Structure Commercial Building with Sandwich Panels 9
Prefab Steel Structure Commercial Building with Sandwich Panels 10
Prefab Steel Structure Commercial Building with Sandwich Panels 11
Prefab Steel Structure Commercial Building with Sandwich Panels 12
Packing and Loading
Shipment via 20'/40'/40HC/40OT sea containers
  • All steel structure weld components are carefully packed with blankets or bubble wrap to prevent scratches during loading and unloading
  • All steel structures components are consolidated in steel pallets within the container, optimizing loading and unloading time and labor costs
  • All sandwich panels are efficiently packed in steel pallets
  • Comprehensive container load plans and regional unloading plans are devised to avoid onsite retransportation
